| Basic Information | ||
| Supported CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel H610 | |
| Form Factor | - Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm | |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| Expansion Slots | ||
| PCI | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* |
|
| M.2 Socket | - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DDR4 DIMM Slots | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel® Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution up to 4K 60Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
|
| Connector & Ports | ||
| HDMI | 2 x HDMI Port | |
| USB (s) | - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) - 6 x USB 2.0 (4 Rear, 2 Front |
|
| LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Realtek 8111H |
|
| Supported Storage | - 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) | |
| Internal I/O Ports | 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto-detect if 3-pin or 4-pin fan is in use. |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Others | ||
| Bundled Software | - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

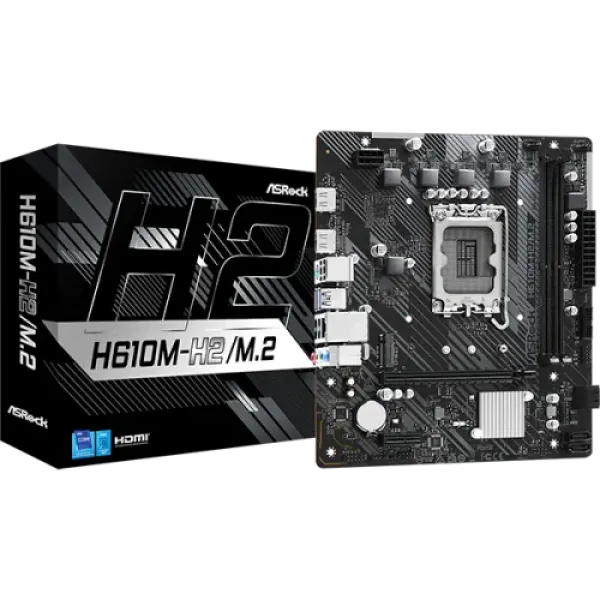

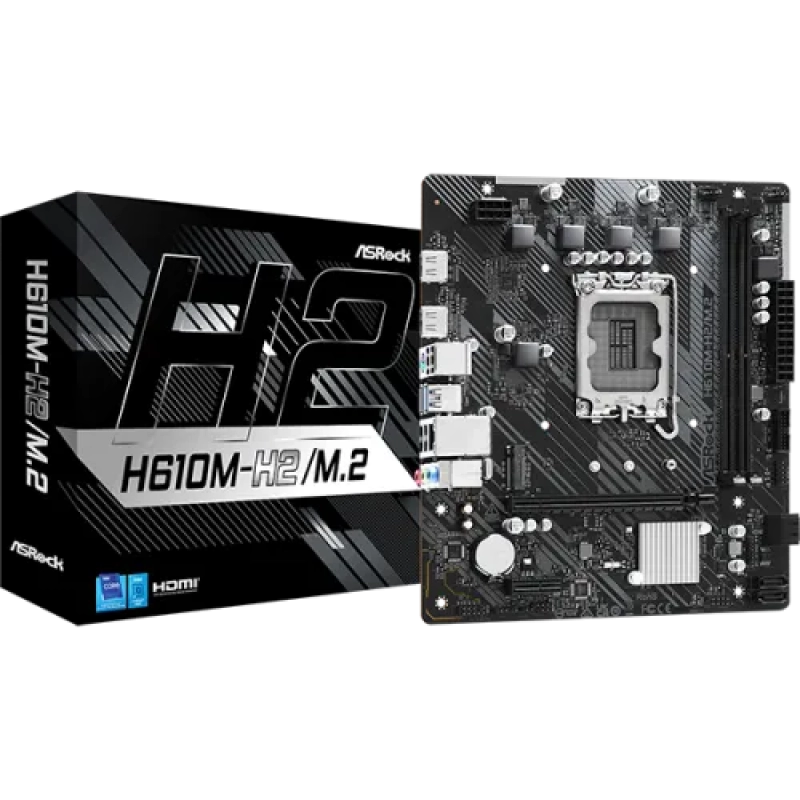

ASRock H610M-H2/M.2 14th Gen mATX DDR4 Motherboard
The ASRock H610M-H2/M.2 14th Gen mATX DDR4 Motherboard is the ultimate choice for users looking to build a powerful and efficient PC. Designed to support 14th, 13th, and 12th Gen Intel® Core™ processors, this motherboard delivers exceptional performance with Intel® Hybrid Technology and Intel® Turbo Boost Max 3.0. Its Micro ATX form factor makes it compact yet feature-packed, offering dual HDMI 2.1 ports for stunning 4K visuals, high-speed storage support with PCIe Gen3x4 M.2 slots, and DDR4 memory compatibility up to 64GB for multitasking ease.
Whether you're upgrading your PC or building one from scratch, the ASRock H610M-H2/M.2 motherboard provides a perfect balance of power, performance, and reliability. Its 7.1-channel HD audio and Gigabit LAN ensure immersive gaming and seamless connectivity, making it an excellent choice for gamers, content creators, and professionals.
Get specific details about this product from customers who own it.
