Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳18,450
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm ) |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel 14th & 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot |
|
| M.2 Socket | 1 x M.2 slots | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2x DIMM | |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Support HDMI® 2.1 with max. resolution of 4K@60Hz. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Rear USB (Total 4 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) *Wi-Fi module is sold separately. |
|
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 3x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Mono-out header(with Amp IC) 1 x SMBUS header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header |
|
| Others | D-Sub (s) 1 x D-Sub | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Aluminum heatsink design |
|
| Warranty Details | ||
| Warranty Details | 3 years warranty | |

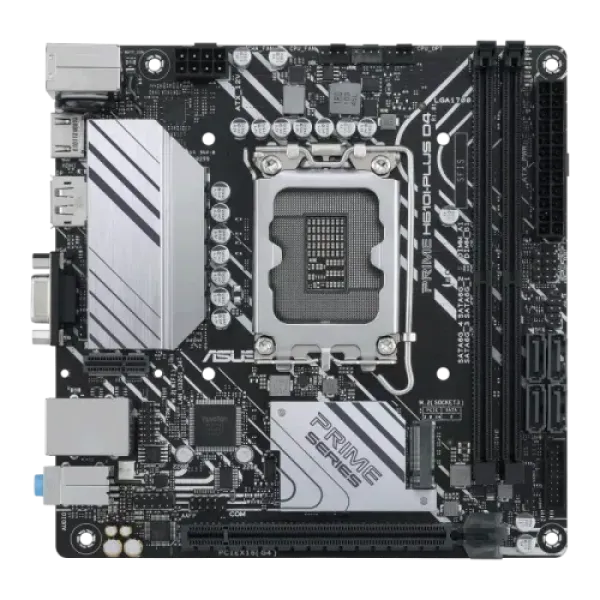

The ASUS PRIME H610I-PLUS D4 Mini-ITX motherboard is designed for users who need a compact yet powerful platform for their small form factor builds. Supporting 14th, 13th, and 12th Gen Intel Core processors on the LGA1700 socket, this motherboard ensures stable performance for both work and entertainment.
Equipped with two DDR4 slots, it supports up to 64GB of RAM at 3200MHz, delivering efficient multitasking and performance in a mini-ITX form factor. The motherboard features multiple display options, including HDMI, DisplayPort, and D-Sub, providing flexibility for different monitor setups, whether for professional applications or entertainment systems.
For connectivity, the Realtek 1Gb Ethernet ensures stable networking, making it suitable for home offices, media centers, and gaming setups. With ASUS' renowned durability and high-quality components, the PRIME H610I-PLUS D4 is built for longevity and stability. Whether you're building a compact gaming PC, a media center, or a powerful workstation, this motherboard delivers excellent performance and reliability in Bangladesh.
