| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | Max. 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet port | |
| Wireless Communication module | ||
| Supported Storage | Total supports 3 x SATA 6Gb/s ports Intel H610 Chipset 3 x SATA 6Gb/s ports |
|
| RAID | ||
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port |
|
| TPM (Trusted Platform Module ) | ||
| Others | ||
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Anti-moisture coating - USBGuard |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years warranty |
|
| others | ||

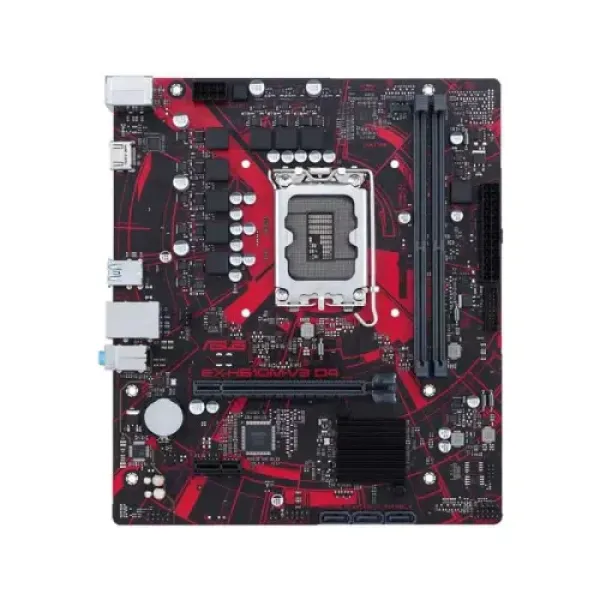

The Asus EX-H610M-V3 D4 mATX motherboard is an excellent choice for building a cost-effective yet reliable system using Intel’s 12th, 13th, and 14th Gen processors (LGA1700 socket). Whether you're assembling a workstation or a home office PC, this motherboard offers all the essential features you need to get your system up and running quickly.
Equipped with DDR4 memory support of up to 64GB, the EX-H610M-V3 D4 provides ample space for multitasking and running demanding applications. Whether you're gaming, content creating, or just browsing, this motherboard ensures smooth performance with its efficient power delivery.
The 1 x HDMI output allows easy connection to monitors and TVs for an enhanced viewing experience, while the Realtek 1Gb Ethernet port ensures reliable network connectivity for smooth online experiences, streaming, or video conferencing.
With a compact mATX form factor, the motherboard is designed to fit into smaller cases, making it ideal for compact PC builds. Despite its size, it doesn’t compromise on performance, offering all the key features necessary for a budget-friendly and efficient PC system.
The Asus EX-H610M-V3 D4 is built for those seeking value, performance, and stability in a compact design. Whether you're looking for a motherboard to support your everyday tasks or a system for light gaming or media work, this motherboard offers a solid foundation to meet your needs.
