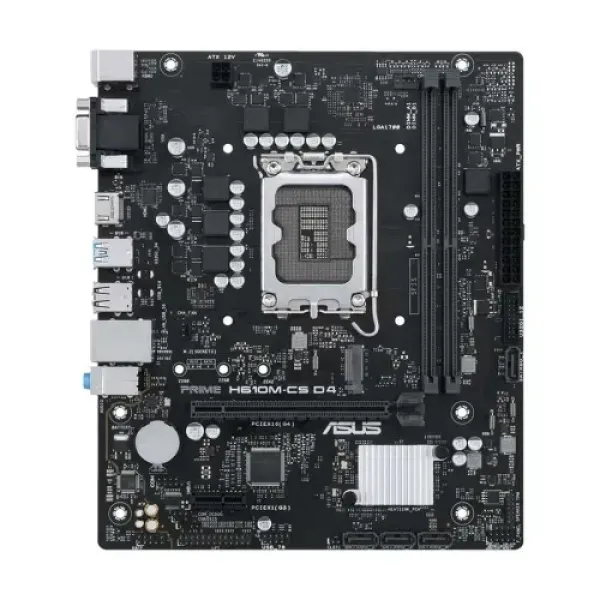

Asus PRIME H610M-CS D4 mATX DDR4 Motherboard

Description

ASUS PRIME H610M-CS D4 mATX DDR4 Motherboard: Ideal for 12th, 13th, and 14th Gen Intel Processors

When building a reliable and compact PC, the ASUS PRIME H610M-CS D4 motherboard is a fantastic option for users looking for high performance and versatility. Designed for Intel's 12th, 13th, and 14th Gen processors, this motherboard combines essential features with affordability, making it perfect for home and office builds.

Overview

The ASUS PRIME H610M-CS D4 is a micro-ATX motherboard powered by the Intel H610 chipset. It offers robust support for Intel Socket LGA1700 processors, accommodating Intel Core, Pentium Gold, and Celeron CPUs. With its compact design and comprehensive feature set, it caters to users seeking a balance of power, efficiency, and durability.

Processor Compatibility

This motherboard supports the latest Intel Core 12th, 13th, and 14th Gen processors, including Pentium Gold and Celeron models, with Intel Turbo Boost Technology 2.0 and 3.0 for enhanced performance. It’s ideal for CPUs with a TDP of up to 65W, making it suitable for both workstations and general-use PCs.

Memory Support

• 2 x DIMM DDR4 slots, supporting speeds of up to 3200 MHz.
• Supports dual-channel memory for improved data processing.
• Maximum memory capacity of 64GB, perfect for multitasking and memory-intensive applications.

Storage Options

• 1 x M.2 slot (PCIe 3.0 x4) for high-speed NVMe SSDs.
• 4 x SATA 6Gb/s ports for HDDs or traditional SSDs.
  This combination ensures fast boot times and ample storage flexibility.

Expansion Slots

• 1 x PCIe 4.0 x16 slot for modern GPUs (12th Gen processors or higher).
• 1 x PCIe 3.0 x1 slot for additional peripherals like Wi-Fi or sound cards.

Connectivity Ports

• Rear USB Ports:
  • 2 x USB 3.2 Gen 1 (5Gbps) Type-A.
  • 4 x USB 2.0 Type-A.
• Front USB Headers:
  • 1 x USB 3.2 Gen 1 header (supports 2 ports).
  • 1 x USB 2.0 header (supports 2 ports).
• 1 x HDMI 2.1 port, supporting 4K at 60Hz for sharp visuals.
• 1 x VGA port for legacy display support.

Build Quality and Special Features

ASUS 5X PROTECTION III:

• DIGI+ VRM: Precision power delivery.
• LANGuard: Enhanced Ethernet protection.
• Overvoltage Protection: Keeps components safe.
• SafeSlot Core: Strengthened PCIe slots for heavy GPUs.
• Stainless-Steel Back I/O: Resistant to corrosion.

Reasons to Buy the ASUS PRIME H610M-CS D4

1. Supports Latest Intel CPUs: Ideal for modern workloads with support for 12th, 13th, and 14th Gen processors.
2. Compact and Durable: The mATX form factor is perfect for space-saving builds.
3. Ample Storage Options: Includes M.2 and SATA slots for flexible storage setups.
4. High-Quality Audio: Realtek 7.1 Surround Sound ensures immersive audio.
5. Enhanced Protection: 5X PROTECTION III features improve longevity and reliability.

Reasons Not to Buy

1. No Wi-Fi or Bluetooth: Requires an additional PCIe adapter for wireless connectivity.
2. Limited Expansion Options: The single PCIe 4.0 x16 slot may not suit users needing multiple GPUs or cards.
