| Basic Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor | |
| Chipset | Intel B760 |
|
| Form Factor | M-ATX 240mm x 207mm |
|
| BIOS | 128M UEFI, supporting multiple languages |
|
| Audio | 5.1 Channel sound card | |
| Others | ||
| Expansion Slots | ||
| PCI | 1xPCIe 4.0 x16 slot 1xPCIe 3.0 x1 slot |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 |
|
| Slots | 2 | |
| Supported Memory | - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | support up to 64 GB of memory (a single socket can support up to 32 GB of memory) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| USB (s) | ||
| LAN Port (s) | RTL8125 2.5G network card |
|
| Wireless Communication module | ||
| Supported Storage | 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel) |
|
| RAID | ||
| Audio | ||
| Internal I/O Ports | Rear I/O interface: - 1×PS/2 interface - 2×USB 2.0 interfaces - 4×USB 3.2 Gen 1 Type-A interfaces - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1×CPU fan pin - 2×system fan pins - 1×water cooling pump pin - 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces - 2×5V 3-pin ARGB pins - 1×front audio pin - 1×front panel pin - 1×speaker pin - 1×ME write protection jumper - 1×clear CMOS jumper - 1×BIOS burner pin - 1×POST card pin - 1×PS/2 call Wake up control jumper |
|
| TPM (Trusted Platform Module ) | ||
| Others | VGA (s) - 1×DP 1.2 interface | |
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

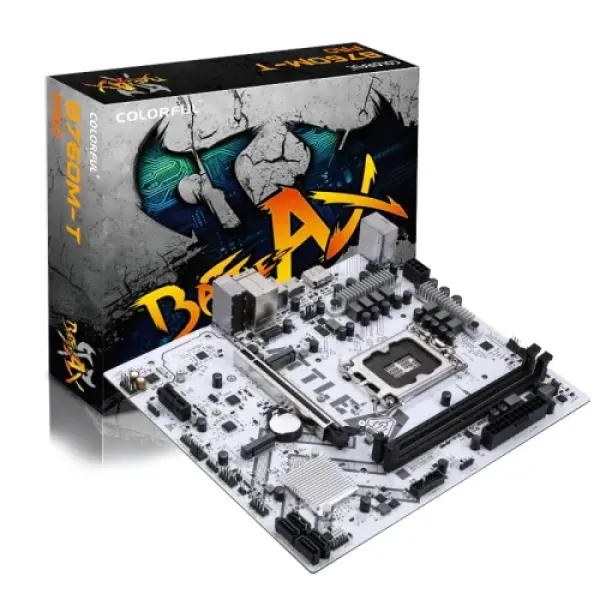

The Colorful BATTLE-AX B760M-T PRO V20 mATX Motherboard is designed for Intel’s latest 14th, 13th, and 12th Gen processors, ensuring great compatibility and performance on the LGA1700 socket. Featuring two DDR4 RAM slots supporting up to 64GB at 4800MHz (OC), it delivers fast and efficient multitasking. The motherboard includes an RTL8111H Gigabit network card for high-speed wired internet and features HDMI and DisplayPort outputs for multiple display connectivity options. Its micro-ATX form factor makes it an ideal choice for compact builds, while its efficient power design ensures stable operation even under heavy workloads. Whether you're assembling a cost-effective gaming setup, a productivity-focused workstation, or a home PC, the Colorful BATTLE-AX B760M-T PRO V20 is a reliable and budget-friendly choice.
