Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳19,200
| Basic Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium ® And Cylon processor |
|
| Chipset | Intel B760 | |
| Form Factor | M-ATX 245mm x 245mm |
|
| BIOS | 128M UEFI, supporting multiple languages | |
| Audio | 5.1 Channel sound card | |
| Others | ||
| Expansion Slots | ||
| PCI | 1×PCIe 5.0 x16 slot 1×PCIe 3.0 x4 slot |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | up to 128 GB of memory (a single socket can support up to 32 GB of memory) |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| USB (s) | ||
| LAN Port (s) | RTL8125 2.5Gbit network card |
|
| Wireless Communication module | ||
| Supported Storage | A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| RAID | ||
| Audio | ||
| Internal I/O Ports | Rear I/O interface: - 4×USB 2.0 interfaces - 2×USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 2 Type-C interface - 1×DP 1.2 interface, supporting up to 4K 60Hz resolution - 1×HDMI 2.0 interface, Up to 4K 60Hz resolution - 1×2.5G network interface - 3×audio interfaces (audio input/audio output/microphone) On board device interface: - 1×CPU fan pin - 3 system fan pins - 1×water-cooled pump pin - 1×USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1×USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2×5V 3-pin ARGB pins - 2×12V 4-pin RGB pin - 1×Front audio pin - 1×front panel pin - 1×speaker pin - 1×clear CMOS jumper - 1×COM port pin - 1×BIOS burner pin - 1×POST card pin - 1×ME write protection jumper - 1×RGB lamp effect control jumper |
|
| TPM (Trusted Platform Module ) | ||
| Others | Display Port (s) 1x DisplayPort | |
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

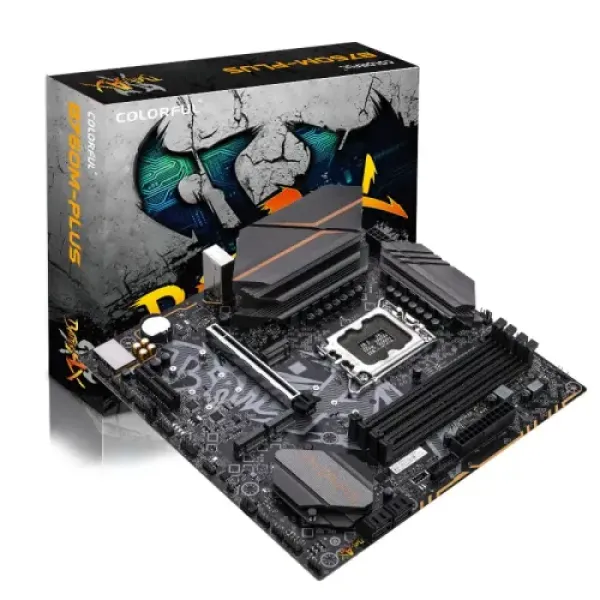

The Colorful BATTLE-AX B760M-PLUS V20 M-ATX Motherboard is a feature-rich solution designed for Intel 14th, 13th, and 12th Gen processors on the LGA1700 socket. With support for up to 128GB DDR4 RAM at 4800MHz (OC), it offers excellent memory capacity and speed for multitasking, gaming, and productivity tasks. The motherboard features an RTL8125 2.5Gbit network card, providing ultra-fast and stable internet connectivity for gamers, streamers, and professionals. Equipped with HDMI and DisplayPort, it supports high-resolution displays for a seamless visual experience. Its micro-ATX form factor makes it a perfect choice for compact PC builds without compromising on performance. With durable power design and quality components, the Colorful BATTLE-AX B760M-PLUS V20 ensures reliable performance for years to come, making it an excellent investment for both casual users and enthusiasts.
