| Basic Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor | |
| Chipset | Intel B760 | |
| Form Factor | ITX 170mm x 170mm |
|
| BIOS | 128M UEFI, supporting multiple languages | |
| Audio | 5.1 Channel sound card |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1 PCIe 5.0 x16 slot | |
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 |
|
| Slots | 2 | |
| Supported Memory | - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | up to 64 GB of memory (a single socket can support up to 32 GB of memory) |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| USB (s) | ||
| LAN Port (s) | RTL8125 2.5Gbit network card |
|
| Wireless Communication module | AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 |
|
| Supported Storage | A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| RAID | See the official BIOS user guide of Colorful for the steps to create a RAID disk array |
|
| Audio | ||
| Internal I/O Ports | Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 2 Wi-Fi 6 antenna interfaces - 3 audio interfaces (audio input/audio output/microphone) - 1 clear CMOS button On board device interface: - 1 CPU fan pin - 1 system fan pin - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 1 5V 3-pin ARGB pin - 1 front audio pin - 1 front panel pin - 1 speaker pin |
|
| TPM (Trusted Platform Module ) | ||
| Others | Display Port (s) 1x DisplayPort |
|
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

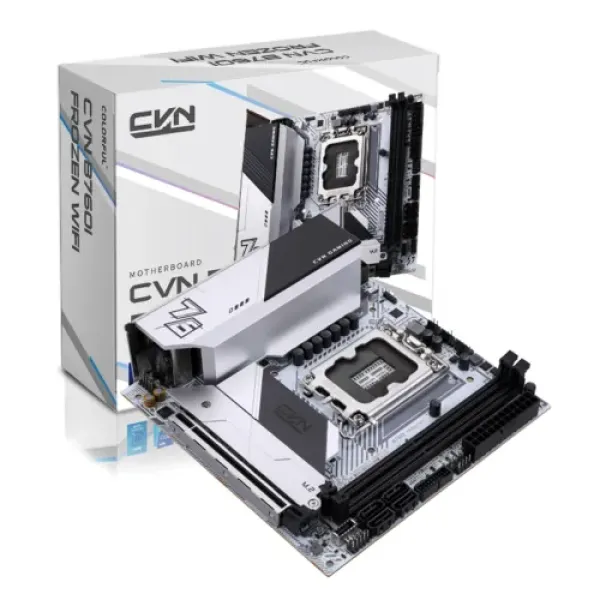

The Colorful CVN B760I FROZEN WIFI V20 ITX Motherboard is a high-performance, compact solution designed to support Intel 14th, 13th, and 12th Gen processors on the LGA1700 platform. Built with efficiency and power in mind, it features dual DDR4 slots supporting up to 64GB RAM at speeds of 4800MHz (OC), making it ideal for gaming, content creation, and high-speed computing. This ITX motherboard is equipped with an RTL8125 2.5Gbit network card for ultra-fast wired connections and WiFi 6 for seamless wireless networking, ensuring lag-free online gaming and smooth productivity. HDMI and DisplayPort outputs provide high-definition visuals for immersive experiences, while its robust build quality ensures long-term reliability. Designed with a sleek aesthetic, this ITX motherboard is perfect for small form-factor builds without compromising on performance or connectivity. Whether you need a compact gaming rig or a powerful workstation, the Colorful CVN B760I FROZEN WIFI V20 is the perfect choice.
