| Basic Information | ||
| Supported CPU | - Supports 14th Gen, 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel H610 | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design |
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) - Supports Surge Protection |
|
| Expansion Slots | ||
| PCI | - 1 x PCIe Gen4x16 Slot - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Slots | 2 x DDR4 DIMM Slots | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
|
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | Display Port (s) 1 x DisplayPort 1.4 D-Sub (s) 1 x D-Sub Port |
|
| Others | ||
| Special Features | ASRock Super Alloy - Premium Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

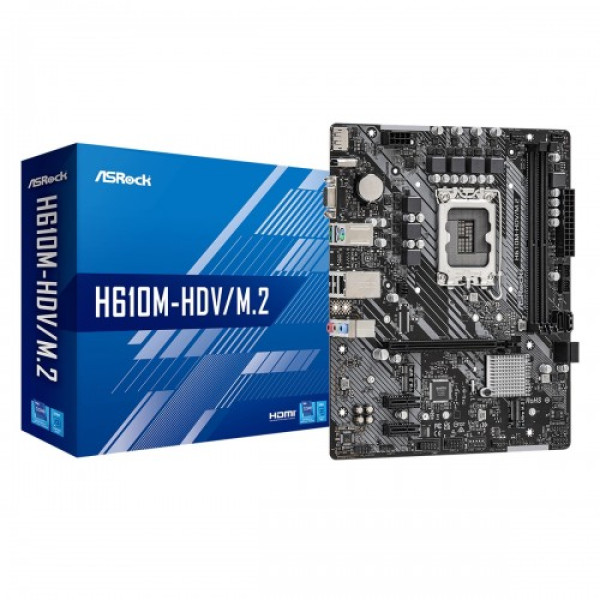

The ASRock H610M-HDV/M.2 Micro ATX Motherboard is designed to support Intel's latest 14th, 13th, and 12th Gen processors, making it an excellent choice for users seeking efficiency and performance on a budget. Built with a 6-phase power design, it ensures stable power delivery for smooth operation. This motherboard supports DDR4 memory up to 3200MHz, enabling faster system performance for gaming, multitasking, and work applications. Featuring multiple display output options, including HDMI, DisplayPort, and D-Sub, it provides versatile connectivity for different monitor setups. The Ultra M.2 slot allows for high-speed NVMe SSDs, significantly improving storage performance. With its compact Micro ATX form factor, the ASRock H610M-HDV/M.2 is an ideal option for space-saving builds without compromising essential features. Whether for gaming, business, or everyday computing, this motherboard is a great investment.
