| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM |
|
| Supported Memory | 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x D-Sub port (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| USB (s) | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet | |
| Wireless Communication module | ||
| Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | ||
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | D-Sub (s) 1 x D-Sub port |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control - RGB header |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

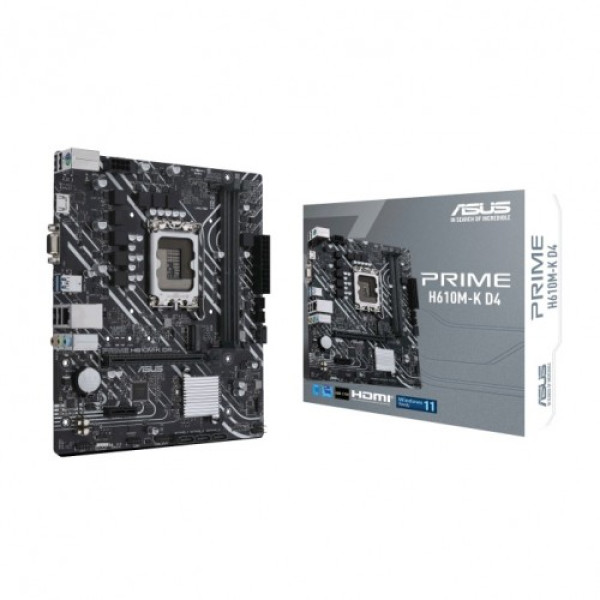

The ASUS PRIME H610M-K D4 Micro ATX motherboard is a dependable and efficient platform for building an Intel-powered system. Supporting Intel 14th, 13th, and 12th Gen processors with its LGA 1700 socket, this motherboard is designed to deliver stability and performance for daily computing, gaming, and professional workloads.
Equipped with two DDR4 memory slots, the motherboard allows up to 64GB of RAM, ensuring smooth multitasking and responsiveness for demanding applications. The inclusion of a 32Gbps M.2 slot enables ultra-fast NVMe SSD storage, reducing load times and enhancing system speed.
For network connectivity, the ASUS PRIME H610M-K D4 features Realtek 1Gb Ethernet, providing stable and reliable internet access for gaming, streaming, and work-from-home setups. The Fan Xpert software and integrated PCH heatsink help maintain optimal temperatures, ensuring longevity and system stability under load.
With ASUS 5X Protection III, this motherboard is built to last, offering high-quality components, surge protection, and reinforced PCIe slots. Whether you're assembling a budget-friendly PC or a stable workstation, the ASUS PRIME H610M-K D4 provides essential features, solid performance, and trusted durability at an affordable price.
