| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| BIOS | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 3x M.2 slots | |
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM |
|
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
|
| Maximum Memory | 192GB | |
| Others | ||
| Graphics | ||
| Graphics | Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Audio | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED | |
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years |
|
| others | ||

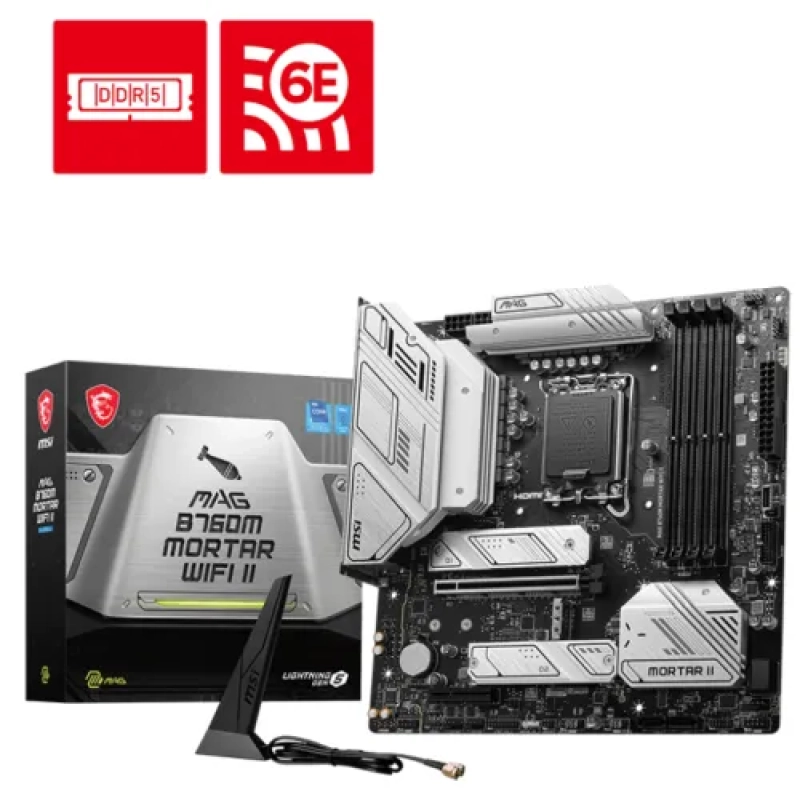

The MSI MAG B760M MORTAR WIFI II DDR5 mATX Motherboard is a powerful choice for users who demand high-performance and top-tier connectivity. Designed for Intel Core 12th, 13th, and 14th Gen Processors, this motherboard supports DDR5 memory and PCIe 5.0, making it perfect for enthusiasts, gamers, and professionals alike. With 3x M.2 slots, Realtek 2.5Gbps LAN, and Intel Wi-Fi 6E, you'll experience lightning-fast data transfers and seamless online gaming. The 7.1-Channel High Definition Audio ensures an immersive audio experience, while the multiple USB ports provide versatile connectivity options. Build your high-performance PC with the MSI MAG B760M MORTAR WIFI II for unbeatable speed and reliability.
