| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 |
|
| Form Factor | mATX 243.84mmx243.84mm |
|
| BIOS | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output |
|
| Others | ||
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | 1x M.2 |
|
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMM |
|
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile |
|
| Maximum Memory | 192GB | |
| Others | ||
| Graphics | ||
| Graphics | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz* |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek 2.5Gbps LAN | |
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | ||
| Internal I/O Ports | Internal I/O Ports: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Others | ||
| Special Features | 4x EZ Debug LED |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years |
|
| others | ||

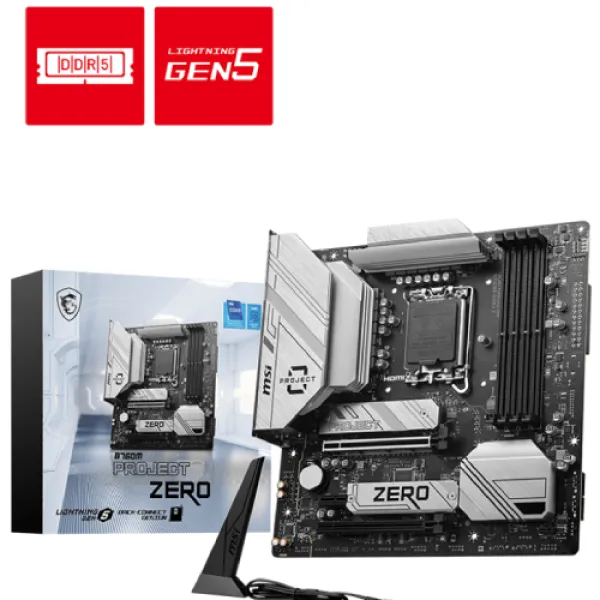

The MSI B760M PROJECT ZERO m-ATX Motherboard is designed for high-end performance with support for Intel Core 12th, 13th, and 14th Gen Processors. With cutting-edge features like DDR5 support, PCIe 5.0, and Wi-Fi 6E, this motherboard is perfect for power users, gamers, and professionals. Experience high-speed connectivity with 2.5Gbps LAN and multiple USB 3.2 Gen 2x2 and Gen 1 ports for fast data transfer. The Realtek ALC897 Codec delivers 7.1-Channel High Performance Audio for immersive sound. Whether you're building a gaming rig or a productivity powerhouse, the MSI B760M PROJECT ZERO motherboard provides the foundation for your next-level build.
