| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | mATX 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Expansion Slots | ||
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | supporting a maximum resolution of 4K 30Hz supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 with HDR port |
|
| USB (s) | 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1x Realtek RTL8111H 1Gbps LAN controller | |
| Supported Storage | 1x M.2 slot (Key M) (from CPU) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices |
|
| Audio | 1x Front panel audio connector | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin +12V power connector 1x 4-pin CPU fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1x TPM module connector | |
| Others | ||
| Special Features | 1x 4-pin RGB LED connector 4x EZ Debug LED |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

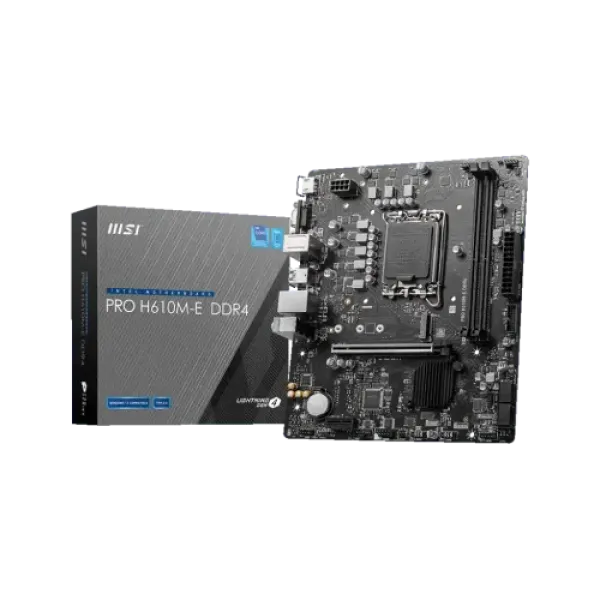

The MSI PRO H610M-E DDR4 mATX Motherboard is the ideal choice for those looking to build a powerful and efficient system at an affordable price. Designed for performance and durability, this motherboard supports Intel 12th, 13th, and 14th Gen Core processors (LGA 1700), along with Pentium Gold and Celeron processors, offering versatility and compatibility for a wide range of applications.
Intel Core Processor Support: Fully compatible with Intel 12th, 13th, and 14th Gen Core processors as well as Pentium Gold and Celeron chips, giving you flexibility to choose from Intel's latest lineup of CPUs.
Memory Support: Equipped with 2 DDR4 memory slots, the MSI PRO H610M-E motherboard supports up to 64GB of RAM at speeds of 2133/2666/3200 MHz. This allows you to run multiple applications simultaneously without slowing down your system.
Enhanced Graphics Options: Featuring an HDMI 1.4 port capable of 4K at 30Hz resolution, as well as a VGA port for legacy devices, the motherboard ensures reliable graphics performance depending on your CPU’s integrated graphics.
USB & Storage Connectivity:
High-Quality Audio: Powered by the Realtek ALC897 Codec, this motherboard supports 7.1-Channel High-Definition Audio, ensuring exceptional sound quality for gaming, content creation, or media consumption.
Form Factor: The mATX form factor (9.3 in. x 7.9 in. / 23.6 cm x 20 cm) makes it compact yet capable of supporting a variety of builds without compromising on performance.
The MSI PRO H610M-E DDR4 mATX Motherboard provides a stable, reliable, and cost-effective foundation for your PC build. Whether you’re looking to game, work, or create, it’s designed to handle your needs with ease. With support for the latest Intel processors, expandable memory, and a variety of ports and slots, this motherboard is built for efficiency and future-proofing.
For more information or to buy the MSI PRO H610M-E DDR4 mATX Motherboard, visit fourstaritbd.com.
