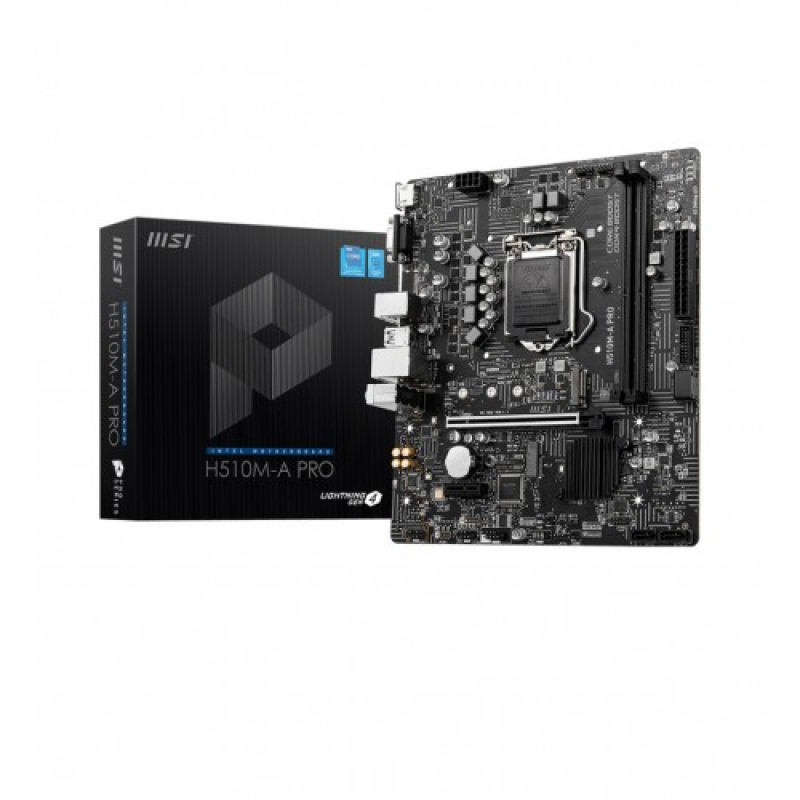

MSI H510M-A PRO

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Chipset	Intel H510 Chipset
Form Factor	mATX Form Factor
Audio	7.1-Channel High Definition Audio
PCI	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH)
M.2 Socket	1x M.2 slot with E key for WiFi module only(M2_2)
Type	DDR4
Slots	2x DDR4 memory slots,
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP
Maximum Memory	support up to 64GB
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz
USB (s)	4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub- GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)	1x Intel I219V 1Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (From H510 Chipset) 1x M.2 slot (Key M) M2_1 slot (From H510 Chipset) Supports up to PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Details	03 years warranty

MSI H510M-A PRO Intel 10th and 11th Gen Micro-ATX Motherboard: Perfect for Budget-Friendly Performance

The MSI H510M-A PRO Intel 10th and 11th Gen Micro-ATX Motherboard is a dependable and versatile choice for those building compact PCs for home, office, or light gaming use. This motherboard combines high-end performance with affordability, making it ideal for users who need reliable technology without overspending.

What Can You Do with the MSI H510M-A PRO?

This motherboard is an excellent option for tasks like productivity, office work, and casual gaming. With support for 10th and 11th Gen Intel Core, Pentium Gold, and Celeron processors, you can tackle multitasking and enjoy smooth system performance. Thanks to DDR4 memory support up to 64GB, it’s also suitable for editing photos, watching high-resolution videos, and running demanding software for small businesses.

Who Should Buy This Motherboard and Why?

If you're building a budget-friendly PC for daily work or casual use, this motherboard offers everything you need. With PCIe 4.0 support (for 11th Gen CPUs), HDMI 2.0b with HDR (for 4K at 60Hz), and multiple USB ports, it’s packed with the latest features to ensure seamless connectivity and an enhanced user experience. Its compact Micro-ATX form factor is perfect for small builds or limited desk space.

When Should You Not Buy It?

This motherboard isn’t designed for heavy gaming or professional-grade tasks like 4K video editing or rendering. If you require more advanced features, such as overclocking support or multiple PCIe slots for high-end GPUs, consider a higher-end motherboard.

Price Range

The MSI H510M-A PRO is priced affordably, making it an excellent choice for budget-conscious buyers who want the latest technology at a competitive price.
