| Basic Information | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket | |
| Chipset | INTEL H470 | |
| Form Factor | mATX 202mmx236mm |
|
| BIOS | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 1x M.2 |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Maximum Memory | 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 1.4, maximum resolution of 4K 30Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN Port (s) | Realtek 8111H Gigabit LAN | |
| Wireless Communication module | ||
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | ||
| Audio | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | 1x VGA |
|
| Others | ||
| Special Features | 4x EZ Debug LED |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years Warranty |
|
| others | ||

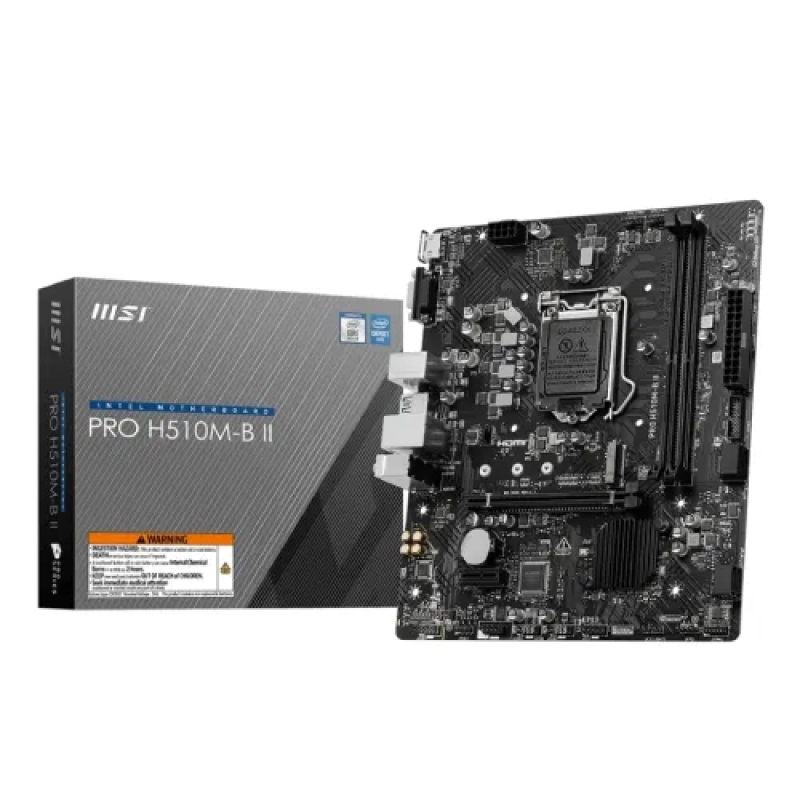

The MSI PRO H510M-B II Micro-ATX Motherboard is designed to provide stable and efficient performance for 10th Gen Intel processors, making it a great choice for home, office, and entry-level gaming setups. Featuring the H510 chipset, this motherboard supports up to 64GB of DDR4 memory across two DIMM slots, with speeds up to 2933MHz, ensuring responsive multitasking and smooth system performance.
Equipped with both HDMI and VGA ports, the MSI PRO H510M-B II offers flexible display connectivity for various monitor configurations. It includes an M.2 slot for high-speed SSD storage, allowing for faster boot times and improved data access. The Realtek 8111H Gigabit LAN ensures a stable and reliable network connection for seamless online experiences.
Built with MSI’s signature durability and high-quality components, this Micro-ATX motherboard is an excellent option for users looking for a compact yet powerful foundation for their PC builds. Whether you're assembling an efficient work computer or a budget-friendly gaming setup, the MSI PRO H510M-B II offers the essential features needed for smooth and reliable performance.
Get specific details about this product from customers who own it.
