| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family. |
|
| Chipset | Intel H510 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.0cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 1 x PCI Express x1 slot (PCIEX1_1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| Others | ||
| Memory | ||
| Type | Dual channel memory architecture |
|
| Slots | 2 x DDR4 DIMM |
|
| Supported Memory | 11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB (32 GB single DIMM capacity) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz |
|
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/100 Mbit) |
|
| Wireless Communication module | ||
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. |
|
| RAID | ||
| Audio | 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | 1 x D-Sub port | |
| Others | ||
| Special Features | Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

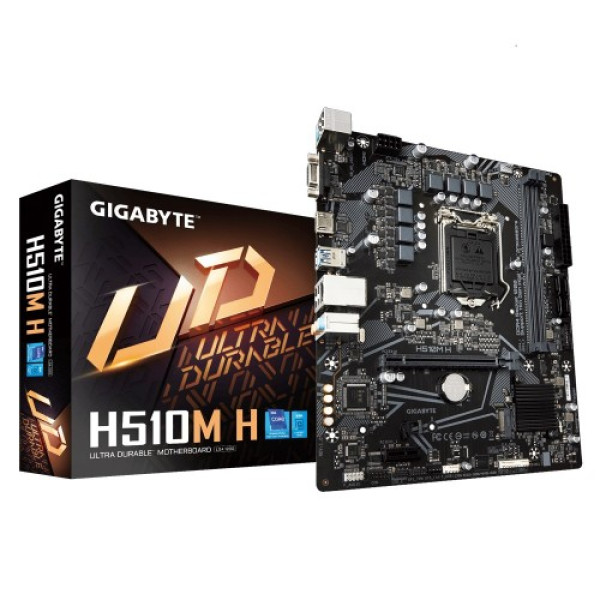

The GIGABYTE H510M H Micro ATX Motherboard is a reliable and cost-effective solution for users seeking a well-rounded platform for their 10th and 11th Gen Intel Core processors. Built with the Intel H510 chipset, it provides stable performance for daily computing, gaming, and business applications.
Featuring dual-channel DDR4 support across two DIMM slots, this motherboard allows users to upgrade their system up to 64GB of RAM for enhanced multitasking and efficiency. The ultra-fast M.2 slot with PCIe Gen3 x4 ensures rapid data transfers, making it an excellent choice for high-speed SSDs. Additionally, the inclusion of GIGABYTE Exclusive 8118 Gaming LAN prioritizes network traffic, reducing latency for smoother online gaming and streaming experiences.
With a compact Micro ATX form factor, the GIGABYTE H510M H is perfect for space-saving builds without compromising performance. Whether you need a motherboard for work, entertainment, or casual gaming, this board delivers reliability, efficiency, and great connectivity options, making it a smart choice for any modern PC setup.
