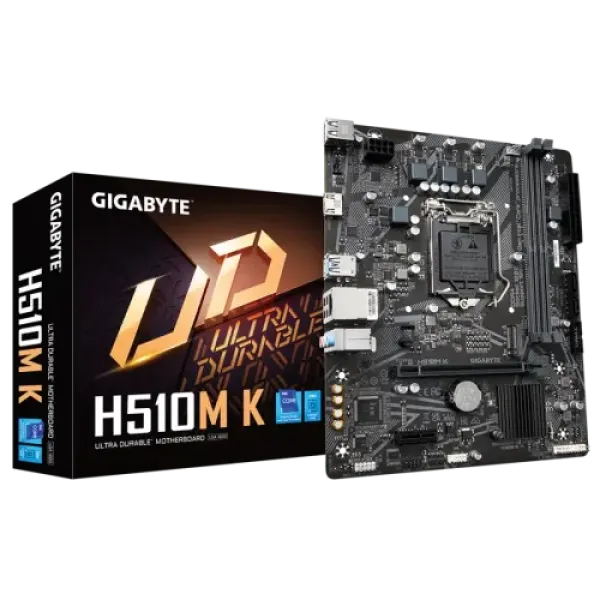

GIGABYTE H510M K Intel Micro ATX Motherboard

Brand: Gigabyte
Status:
৳9,300
10% off
৳10,310

Main Features

  • Model: H510M K
  • Supported CPU: 11th Gen Intel Core Processors (LGA1200)
  • Supported RAM: DDR4, 2 DIMMs, up to 64 GB
  • Graphics Output: 1 x HDMI
  • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps)
Show More

Payment Methods

৳9,300

Pay cash discounted price and save

Pay cash discounted price and save

৳ 859/ month

EMI available for 12 months on regular price: ৳10,310

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPU
11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
L3 cache varies with CPU
Chipset
Intel B560 Express Chipset
Form FactorMicro ATX Form Factor; 22.6cm x 18.5cm
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Others
Expansion Slots
PCI
CPU:
1 x PCI Express x16 slot:
Supporting PCIe 4.0 and running at x16
(PCIe 4.0 is only supported by 11th-generation processors.)

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket
Others
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
1th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i5/i3/Pentium®/Celeron processors:
Support for DDR4 2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64GB (32 GB single DIMM capacity)
Others
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Others
Connector & Ports
HDMI
1 x HDMI port
USB (s)
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps)
Wireless Communication module
Supported StorageChipset:
1 x M.2 connector:
Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD
2 x SATA 6Gb/s connectors
RAID
Audio
Internal I/O Ports
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module )
Others
Others
Special FeaturesSupport for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Details
Warranty Details03 Years Warranty
others

Description

The GIGABYTE H510M K Micro ATX Motherboard is a dependable and efficient solution for users looking to build or upgrade their PC with 11th Gen Intel Core processors. Designed with affordability and practicality in mind, this motherboard features the Intel H510 chipset, ensuring stable system performance and reliable compatibility.

With support for up to 64GB of DDR4 memory across two DIMM slots, users can enjoy smooth multitasking, whether for work, entertainment, or light gaming. The integrated HDMI port allows for easy display connectivity, delivering high-quality visuals for modern monitors. Additionally, the Realtek Gigabit Ethernet LAN chip provides a stable and fast 1Gbps network connection, ensuring seamless online experiences.

Its Micro ATX form factor makes it a great choice for compact builds, making it ideal for budget-conscious users who need a solid foundation for everyday computing. Whether you're setting up a home office PC, a multimedia system, or a reliable workstation, the GIGABYTE H510M K offers the right balance of performance and affordability.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of GIGABYTE H510M K Intel Micro ATX Motherboard in Bangladesh?

The best price of GIGABYTE H510M K Intel Micro ATX Motherboard in Bangladesh is 9,300. You can buy the GIGABYTE H510M K Intel Micro ATX Motherboard at best price from our website.
