| Basic Information | ||
| Supported CPU | - Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) - Digi Power design - 5 Power Phase design - Supports Intel Turbo Boost Max 3.0 Technology |
|
| Chipset | Intel H510 | |
| Form Factor | - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm - Solid Capacitor design |
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment |
|
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Supports Surge Protection |
|
| Expansion Slots | ||
| PCI | 11th Gen Intel Core Processors - 1 x PCI Express 4.0 x16 Slot 10th Gen Intel Core Processors - 1 x PCI Express 3.0 x16 Slot - 1 x PCI Express 3.0 x1 Slots |
|
| M.2 Socket | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) | |
| Memory | ||
| Type | Dual Channel DDR4 Memory Technology |
|
| Slots | 2 x DDR4 DIMM Slots |
|
| Supported Memory | - Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | - 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics - Three graphics output options: D-Sub, DVI-D and HDMI** - Supports Triple Monitor - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) - Supports HDCP 2.3 with DVI-D and HDMI 2.0 Ports |
|
| Connector & Ports | ||
| HDMI | Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz | |
| USB (s) | Connector: - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Rear Panel I/O: - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| LAN Port (s) | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
|
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support Intel Rapid Storage Technology 18, NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s |
|
| Audio | Connector: - 1 x Front Panel Audio Connector Rear Panel I/O: - HD Audio Jacks: Line in / Front Speaker / Microphone |
|
| Internal I/O Ports | - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. - 1 x Chassis Fan Connector (4-pin) * The Chassis Fan supports the Chassis fan of maximum 1A (12W) fan power. - 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Others | D-Sub (s) Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz DVI-D (s) Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz |
|
| Others | ||
| Special Features | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High-Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Bundled Software | - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN |
|
| Warranty Details | ||
| Warranty Details | 03 years warranty | |

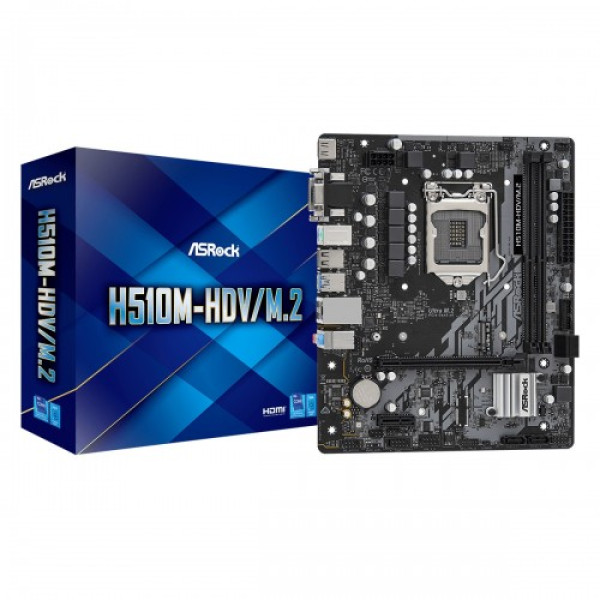

The ASRock H510M-HDV/M.2 10th and 11th Gen Micro ATX Motherboard is built for budget-conscious users looking for a reliable and efficient computing experience. Supporting Intel’s 10th and 11th Gen Core processors, it provides stable performance for gaming, work, and everyday tasks. This motherboard comes with Base Frequency Boost (BFB) Technology, which enhances CPU power, while DDR4 memory support up to 3200MHz (OC) ensures smooth operation. The Ultra M.2 slot delivers high-speed storage with up to 32 Gb/s transfer rates, making boot times and data access significantly faster. Its compact Micro ATX design allows for versatile builds while maintaining essential connectivity. Whether you're assembling a gaming rig or an office workstation, the ASRock H510M-HDV/M.2 offers great value and performance.
