| Basic Information | ||
| Supported CPU | Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU |
|
| Chipset | Intel H310 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 22.6cm x 17.4cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) |
|
| Others | ||
| Memory | ||
| Type | Dual-channel memory architecture |
|
| Slots | 2 x DDR4 DIMM |
|
| Supported Memory | Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 32 GB | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
|
| Others | Max Shared Memory 1 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz Support for HDMI 1.4 version and HDCP 2.2. |
|
| USB (s) | 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Wireless Communication module | ||
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s connector |
|
| RAID | ||
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
| Others | ||
| Special Features | Support for APP Center @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management Smart Backup Smart Keyboard System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years | |
| others | ||

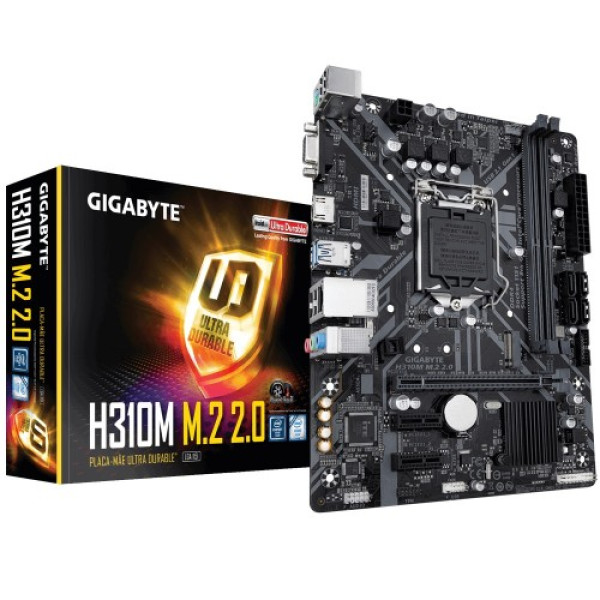

The GIGABYTE H310M M.2 Micro ATX Motherboard is an efficient and cost-effective choice for users seeking reliable performance with 9th and 8th Gen Intel Core processors. Built with the Intel H310 Express chipset, it ensures stable and optimized computing for home, office, and light gaming applications.
With support for up to 32GB of DDR4 RAM across two DIMM slots, this motherboard enables smooth multitasking and responsiveness. It is also CEC 2019 ready, meaning it meets power efficiency standards for environmentally friendly computing. The Micro ATX form factor makes it an ideal choice for compact builds, delivering essential connectivity without sacrificing performance.
Perfect for budget-conscious users, the GIGABYTE H310M M.2 provides a reliable foundation for everyday computing while maintaining energy efficiency and durability. Whether for business use or personal computing, this motherboard ensures a solid and seamless experience.
Get specific details about this product from customers who own it.
