| Basic Information | ||
| Supported CPU | Supports 9th / 8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket |
|
| Chipset | Intel H310 Chipset | |
| Form Factor | m-ATX Form Factor 9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) |
|
| BIOS | ||
| Audio | 7.1-Channel High Definition Audio | |
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots |
|
| M.2 Socket | 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
|
| Others | ||
| Memory | ||
| Type | Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Slots | 2 x DDR4 memory slots |
|
| Supported Memory | Supports DDR4 2666/ 2400/ 2133 MHz |
|
| Maximum Memory | 32GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz |
|
| USB (s) | Intel H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors) |
|
| LAN Port (s) | 1 x Intel I219-V Gigabit LAN controller | |
| Wireless Communication module | ||
| Supported Storage | 4 x SATA 6Gb/s ports 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices |
|
| RAID | ||
| Audio | Realtek ALC887 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Others | 1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60H |
|
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 years Warranty |
|
| others | ||

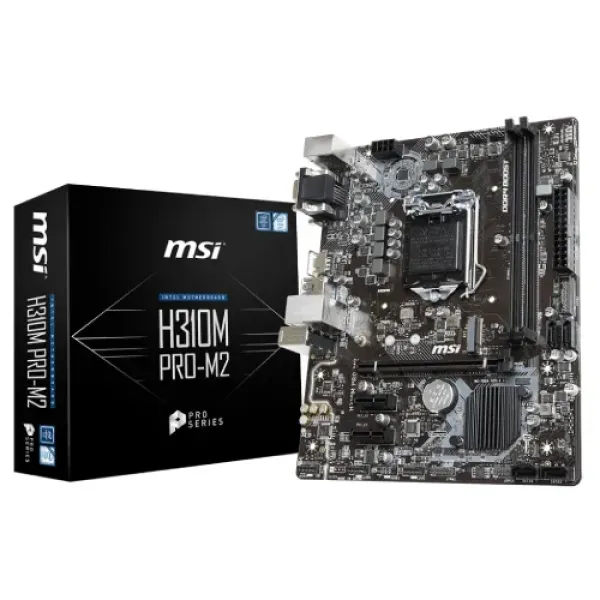

The MSI H310M Pro-M2 Micro-ATX Motherboard is a cost-effective and efficient solution for users building a reliable system with 9th or 8th Gen Intel Core, Pentium Gold, or Celeron processors. Featuring an LGA 1151 socket with H310 chipset, this motherboard provides stable performance while maintaining affordability.
Equipped with two DIMM slots, the MSI H310M Pro-M2 supports up to 32GB of DDR4 RAM, ensuring smooth multitasking and performance for everyday computing needs. The motherboard offers multiple display options, including HDMI, DVI, and VGA, making it compatible with a wide range of monitors. Its integrated Realtek ALC887 audio codec delivers clear and immersive sound for a better multimedia experience.
For faster storage solutions, this motherboard includes an M.2 slot, enabling users to install high-speed NVMe SSDs for improved system responsiveness and boot times. Its durable design, paired with MSI’s quality components, ensures longevity and reliable performance, making it an excellent choice for home offices, business workstations, and budget gaming PCs.
Get specific details about this product from customers who own it.
