Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳18,450
| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumpe |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | 1x DisplayPort | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

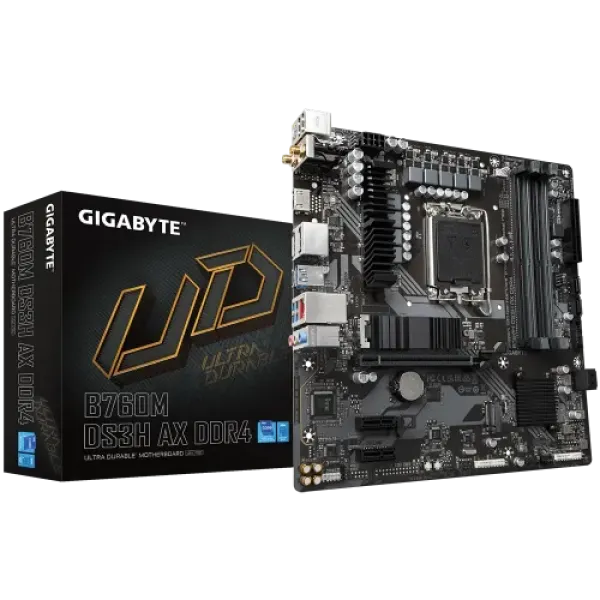

The GIGABYTE B760M DS3H AX DDR4 Micro-ATX Motherboard is a feature-rich and high-performance motherboard built for Intel’s 14th, 13th, and 12th Gen processors. Designed for gamers, content creators, and professionals, this motherboard delivers blazing-fast speed, seamless connectivity, and superior reliability, making it an excellent choice for modern PC builds.
With four DDR4 DIMM slots, the B760M DS3H AX supports up to 128GB of DDR4 RAM, allowing for memory speeds of up to 5333MHz (OC). This ensures superior multitasking, reduced latency, and higher bandwidth, making it perfect for gaming, video editing, 3D rendering, and other resource-intensive tasks.
For visual output, this motherboard is equipped with 1x HDMI and 1x DisplayPort, allowing you to connect multiple monitors and enjoy high-resolution, immersive visuals. Whether you're gaming in 4K, working on detailed graphic designs, or streaming content, the B760M DS3H AX ensures a smooth and high-quality display experience.
One of the key highlights of this motherboard is its Intel Wi-Fi 6E AX211 wireless module, which provides ultra-fast wireless connectivity with lower latency and improved network efficiency. Combined with the Realtek 2.5GbE LAN chip, this motherboard guarantees stable and high-speed internet performance, making it ideal for competitive gaming, streaming, and high-speed data transfers.
Built with GIGABYTE’s Ultra Durable technology, the B760M DS3H AX features high-quality components, enhanced power delivery, and an optimized thermal design for better heat dissipation and long-lasting durability. The efficient cooling system ensures that your system remains stable even under heavy workloads or overclocking scenarios.
If you’re looking for a powerful, future-proof motherboard with high-speed DDR4 support, next-gen Wi-Fi 6E, and excellent networking capabilities, the GIGABYTE B760M DS3H AX DDR4 Micro-ATX Motherboard is a top-tier choice for gaming, professional workstations, and high-performance PC builds.
