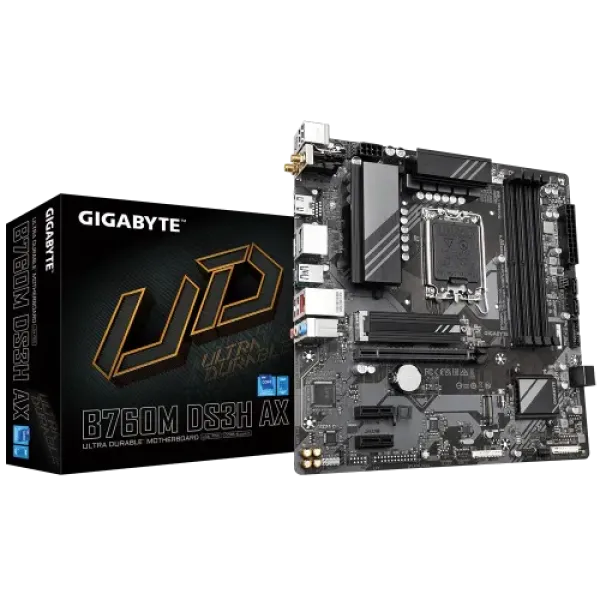

GIGABYTE B760M DS3H AX mATX Motherboard

Brand: Gigabyte
Status:
৳17,999
15% off
৳20,290

Main Features

  • Model: B760M DS3H AX
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7600(OC)
  • Graphics Output: 1x HDMI, 2x DisplayPort
  • Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Show More

Payment Methods

৳17,999

Pay cash discounted price and save

Pay cash discounted price and save

৳ 1,691/ month

EMI available for 12 months on regular price: ৳20,290

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPU
LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
BIOS1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Others
Expansion Slots
PCICPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
M.2 Socket
Others
Memory
TypeDDR5
Slots4
Supported Memory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memoryup to 192 GB (48 GB single DIMM capacity) of system memory
Others
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
Support for up to triple-display at the same time
Others
Connector & Ports
HDMI1x HDMI
USB (s)
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication moduleAMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Intel Wi-Fi 6E AX210 (For PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Intel Wi-Fi 6E AX211 (For PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Supported StorageCPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio3 x audio jacks
Internal I/O Ports1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others2x DisplayPort
Others
Special Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Details
Warranty Details3 years
others

Description

The GIGABYTE B760M DS3H AX DDR5 Micro-ATX Motherboard is a powerful and feature-rich motherboard built for next-generation performance, high-speed connectivity, and ultimate reliability. Designed to support Intel’s 14th, 13th, and 12th Gen processors with LGA1700 compatibility, this motherboard is ideal for gaming enthusiasts, content creators, and high-performance PC builders.

Equipped with four DDR5 DIMM slots, the B760M DS3H AX supports up to 192GB of RAM at an overclocked speed of 7600MHz, delivering superior memory bandwidth, lower power consumption, and unmatched speed. Whether you're gaming, streaming, or running intensive applications, this motherboard ensures smooth multitasking and ultra-fast performance.

For display output, it includes dual DisplayPort and HDMI connectivity, allowing for high-resolution multi-monitor setups. This makes it an excellent choice for gamers and professionals working with high-definition visuals.

One of the standout features of the B760M DS3H AX is its advanced networking capabilities. It comes with Realtek 2.5GbE LAN for high-speed, low-latency wired connections and Wi-Fi 6E (802.11ax) for ultra-fast wireless performance, ensuring stable, low-latency gaming, streaming, and cloud computing.

Built with GIGABYTE’s Ultra Durable components, this motherboard features high-quality capacitors, enhanced PCB layers, and superior power delivery, ensuring long-lasting stability and durability. The enhanced thermal design keeps your system cool and stable under heavy loads, making it perfect for gaming, overclocking, and professional workloads.

With next-generation DDR5 memory support, high-speed connectivity, and a robust power delivery system, the GIGABYTE B760M DS3H AX DDR5 Micro-ATX Motherboard is an ideal choice for building a powerful, high-performance PC that is future-proof and optimized for speed, stability, and efficiency.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of GIGABYTE B760M DS3H AX DDR5 Micro-ATX Motherboard in Bangladesh?

The best price of GIGABYTE B760M DS3H AX DDR5 Micro-ATX Motherboard in Bangladesh is 17,999. You can buy the GIGABYTE B760M DS3H AX DDR5 Micro-ATX Motherboard at best price from our website.
