| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Others | ||
| Memory | ||
| Type | DDR4 |
|
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 2 x USB 2.0/1.1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Wireless Communication module | ||
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumpe |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | 1x DisplayPort | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

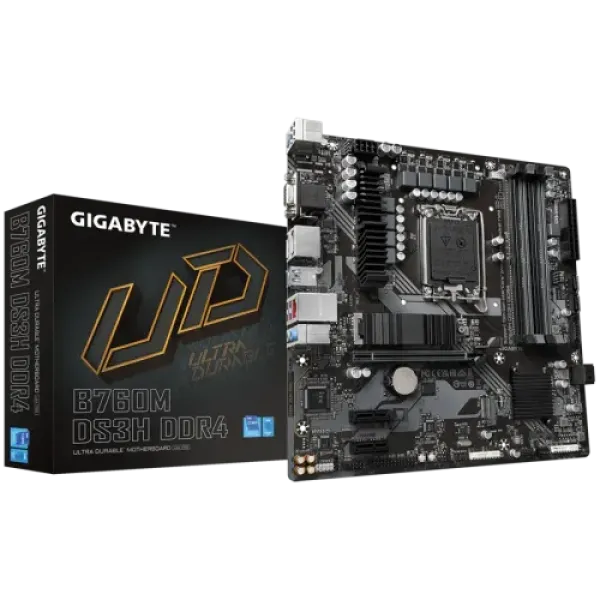

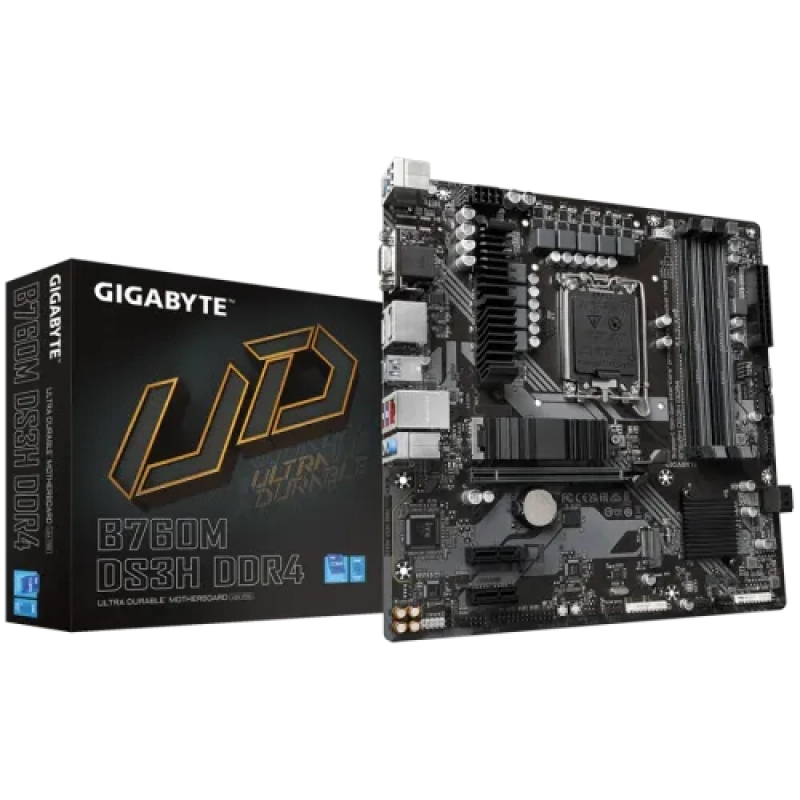

The GIGABYTE B760M DS3H DDR4 Micro-ATX Motherboard is a high-performance and feature-rich motherboard tailored for gamers, professionals, and PC enthusiasts who need stability, power, and high-speed connectivity. Built on the Intel B760 chipset, it is compatible with Intel’s 14th, 13th, and 12th Gen processors, providing exceptional processing power for demanding applications.
With support for four DDR4 memory slots, this motherboard can handle up to 128GB of RAM, with speeds reaching 5333MHz (OC). Whether you're into gaming, streaming, or professional workloads like video editing and 3D rendering, the B760M DS3H DDR4 ensures smooth, efficient, and lag-free performance.
For graphics connectivity, this motherboard includes both HDMI and DisplayPort outputs, allowing for multi-monitor setups and high-definition visuals. Whether you need 4K resolution, immersive gaming experiences, or detailed professional workflows, this motherboard supports crystal-clear display quality.
One of its standout features is the Realtek 2.5GbE LAN chip, which provides ultra-fast and stable wired internet connectivity. Whether you're an esports gamer, streamer, or professional user, the 2.5GbE LAN ensures minimal latency, fast data transfers, and a seamless online experience.
Engineered with GIGABYTE Ultra Durable components, the B760M DS3H DDR4 guarantees long-lasting reliability and performance. Enhanced thermal solutions and optimized power delivery keep your system cool and efficient, even under heavy workloads.
If you’re looking for a reliable, high-performance, and future-ready motherboard for your next gaming or professional PC build, the GIGABYTE B760M DS3H DDR4 Micro-ATX Motherboard delivers exceptional value, speed, and connectivity for modern computing needs.
