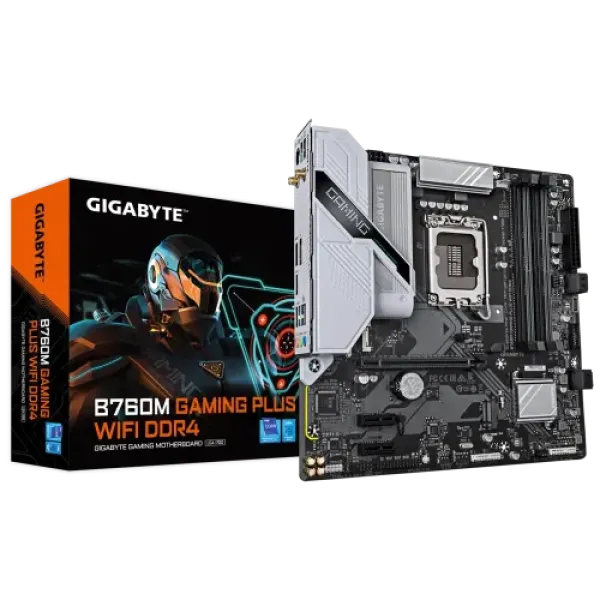

GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard

Brand: Gigabyte
Status:
৳20,000
9% off
৳22,100

Main Features

  • Model: B760M GAMING PLUS WIFI DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x D-Sub port
  • Features: Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Show More

Payment Methods

৳20,000

Pay cash discounted price and save

Pay cash discounted price and save

৳ 1,842/ month

EMI available for 12 months on regular price: ৳22,100

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPULGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
ChipsetIntel B760 Express Chipset
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Others
Expansion Slots
PCICPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.


Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
M.2 Socket
Others
Memory
TypeDDR4
Slots4
Supported MemorySupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
Supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Others
Graphics
Graphics
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.


- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Others
Connector & Ports
HDMI
1 x HDMI port
USB (s)
Chipset:
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
Realtek Wi-Fi 6 RTL8851BE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Supported StorageCPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio3 x audio jacks
Internal I/O PortsInternal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks
TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
Others1 x DisplayPort
Others
Special Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled SoftwareNorton Internet Security (OEM version)
LAN bandwidth management software
Warranty Details
Warranty Details3 years Warranty
others

Description

The GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard is a power-packed motherboard designed for gamers and PC enthusiasts seeking a compact yet high-performance solution. It supports Intel’s 14th, 13th, and 12th Gen processors with the LGA1700 socket, ensuring seamless compatibility with the latest CPUs.

Equipped with four DDR4 DIMM slots, this motherboard supports up to 128GB of RAM at speeds of 5333MHz (OC), delivering faster load times, improved multitasking, and overall enhanced system responsiveness. Whether you're into competitive gaming, professional editing, or multitasking-heavy workloads, this motherboard ensures smooth and efficient performance.

The B760M GAMING PLUS WIFI provides versatile display connectivity options, including HDMI, DisplayPort, and D-Sub, offering high-resolution visuals for gaming, streaming, and professional applications. It also features Wi-Fi connectivity, allowing for wireless networking capabilities without requiring an additional adapter.

For stable and high-speed internet performance, the Realtek GbE LAN chip ensures a reliable 1Gbps wired connection, reducing latency and improving online gaming experiences. Combined with GIGABYTE’s durable components, this motherboard delivers long-term stability and durability.

Designed with an optimized thermal solution, it includes high-quality heatsinks and power design enhancements to keep your system cool and efficient, even during intense workloads. The Micro ATX form factor ensures compatibility with a wide range of PC cases, making it a versatile choice for various PC builds.

With high-speed memory support, multiple connectivity options, and an advanced power delivery system, the GIGABYTE B760M GAMING PLUS WIFI DDR4 Micro ATX Motherboard is an ideal foundation for a powerful and future-proof gaming or productivity system.
