| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_3~PCIEX1_5) |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 |
|
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports on the back panel Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) | |
| Wireless Communication module | ||
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumpe |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | 1x DisplayPort | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

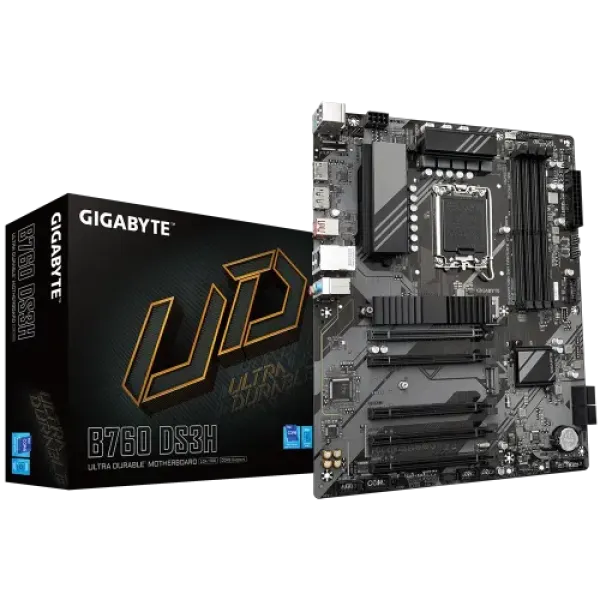

The GIGABYTE B760 DS3H DDR5 ATX Motherboard is an exceptional choice for gamers, professionals, and PC enthusiasts looking for high-speed performance and stability. Supporting Intel’s 14th, 13th, and 12th Gen processors with the LGA1700 socket, this ATX motherboard is designed to deliver maximum efficiency and power for both gaming and productivity-based workloads.
One of the motherboard’s key highlights is its four DDR5 DIMM slots, allowing support for up to 192GB of RAM at an impressive 7600MHz (OC). This ensures lightning-fast data speeds, improved energy efficiency, and superior multitasking capabilities, making it ideal for high-performance gaming, video editing, and professional applications.
For graphics output, the GIGABYTE B760 DS3H features both HDMI and DisplayPort connectivity, providing high-resolution display options for multi-monitor setups. Whether you're gaming in 4K resolution, streaming content, or working on professional-grade applications, this motherboard delivers stunning visuals with enhanced clarity.
The Gigabit Ethernet LAN ensures stable, high-speed network connectivity, perfect for online gaming, cloud computing, and uninterrupted data transfers. Combined with GIGABYTE’s Ultra Durable build quality, this motherboard features high-quality components, an advanced PCB design, and effective power management, ensuring long-term durability and reliability.
Designed with an enhanced thermal solution, the B760 DS3H incorporates premium heat dissipation mechanisms, keeping your system cool and stable even during high-performance tasks. It also includes multiple expansion slots, allowing for upgrades and future-proofing your system with ease.
With next-generation DDR5 memory support, versatile connectivity options, and superior build quality, the GIGABYTE B760 DS3H DDR5 ATX Motherboard is a top-tier choice for building a high-performance, future-proof PC suited for gaming, creative work, and multitasking at the highest level.
