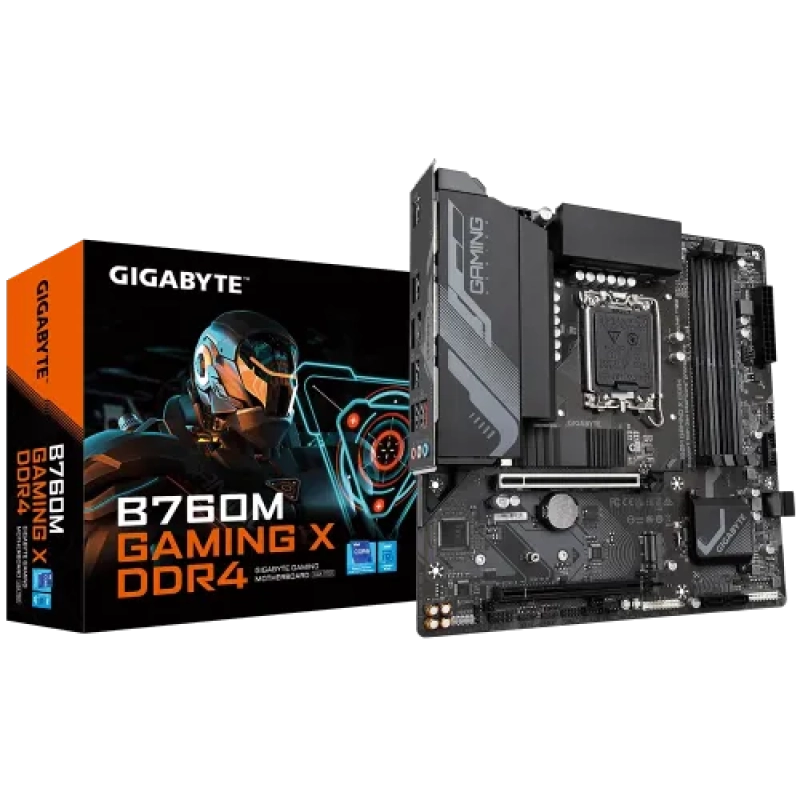

GIGABYTE B760M GAMING X DDR4 mATX Motherboard

Brand: Gigabyte
Status:
৳18,000
5% off
৳19,530

Main Features

  • Model: B760M GAMING X DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip
Show More

Payment Methods

৳18,000

Pay cash discounted price and save

Pay cash discounted price and save

৳ 1,628/ month

EMI available for 12 months on regular price: ৳19,530

remove add
  • Specification
  • Description
  • Reviews

Product Specification

Basic Information
Supported CPU
LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset
Intel B760 Express Chipset
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
AudioRealtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Others
Expansion Slots
PCI
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Others
Memory
Type
DDR4
Slots4
Supported MemorySupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory128GB
Others
Graphics
Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Others
Connector & Ports
HDMI1x HDMI
USB (s)
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Wireless Communication module
Supported Storage1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio1 x front panel audio header
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others1x DisplayPort
Others
Special Features
2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Warranty Details
Warranty Details3 years
others

Description

The GIGABYTE B760M GAMING X DDR4 Micro-ATX Motherboard is built for gamers, content creators, and PC enthusiasts looking for a powerful and efficient motherboard with exceptional performance, durability, and connectivity. Designed to support Intel's 14th, 13th, and 12th Gen processors, this motherboard utilizes the B760 chipset to deliver next-gen gaming experiences and high-speed computing.

Equipped with four DDR4 DIMM slots, the B760M GAMING X DDR4 supports up to 128GB of RAM with speeds of 5333MHz (OC). This allows for seamless multitasking, faster game loading times, and improved system responsiveness, making it an ideal choice for competitive gaming, content creation, and high-performance applications.

For graphics output, this motherboard includes 1x HDMI and 1x DisplayPort, enabling high-resolution video output and multi-monitor support. Whether you're gaming in 4K, editing videos, or working with high-end applications, the B760M GAMING X DDR4 provides crisp visuals and smooth performance.

In terms of networking, this motherboard is equipped with a Realtek 2.5GbE LAN chip, delivering ultra-fast and stable wired connections for lag-free online gaming, high-speed downloads, and uninterrupted streaming. The enhanced thermal design ensures that the system remains cool and stable, even under intense workloads or overclocking scenarios.

Built with GIGABYTE’s Ultra Durable components, the B760M GAMING X DDR4 features high-quality capacitors, enhanced PCB layers, and superior power delivery, making it highly reliable and long-lasting. The motherboard’s reinforced PCIe slots and optimized layout further enhance performance and stability, ensuring that your gaming rig or workstation runs at peak efficiency.

If you’re looking for a versatile, high-performance Micro-ATX motherboard with next-generation gaming and connectivity features, the GIGABYTE B760M GAMING X DDR4 is an excellent choice for building a powerful, future-ready gaming PC or workstation.

Reviews (0) :

Get specific details about this product from customers who own it.

Write your review

 Bad           Good

What is the best price of GIGABYTE B760M GAMING X DDR4 Micro-ATX Motherboard in Bangladesh?

The best price of GIGABYTE B760M GAMING X DDR4 Micro-ATX Motherboard in Bangladesh is 18,000. You can buy the GIGABYTE B760M GAMING X DDR4 Micro-ATX Motherboard at best price from our website.
