Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳12,500
| Basic Information | ||
| Supported CPU | 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors |
|
| Chipset | Intel B560 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 4.0 standard.)(Note) 1 x PCI Express x1 slot (PCIEX1) (The PCIEX1 slot conforms to PCI Express 3.0 standard.) |
|
| M.2 Socket | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB) |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | 11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB (32 GB single DIMM capacity) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @30 Hz | |
| USB (s) | Chipset: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset + USB 2.0 Hub: 8 x USB 2.0/ 1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbit/100 Mbit) | |
| Wireless Communication module | ||
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 4 x SATA 6Gb/s connectors Intel Optane Memory Ready |
|
| RAID | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 year | |
| others | ||

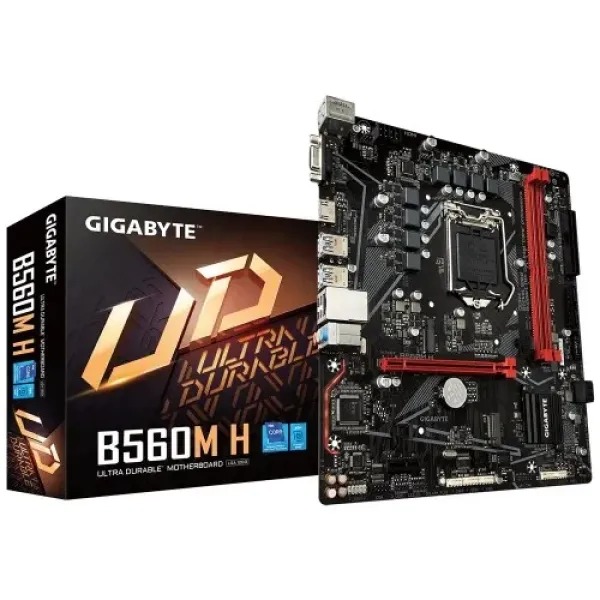

The GIGABYTE B560M H is a reliable and feature-rich micro-ATX motherboard designed to support Intel’s 11th and 10th Generation processors. Powered by the Intel B560 Express Chipset, it offers advanced connectivity, dual M.2 slots, high-speed memory support, and essential features for gaming, content creation, and everyday use. Compact yet powerful, it’s an ideal choice for building versatile and efficient PCs.
The GIGABYTE B560M H motherboard is equipped to handle the latest 11th and 10th Generation Intel Core processors, delivering robust performance for gaming and multitasking. Its PCIe 4.0 support ensures ultra-fast data transfer speeds, while the dual M.2 slots provide options for high-speed NVMe SSDs. The primary M.2 slot supports PCIe 4.0 x4 SSDs, making it a perfect fit for gamers and professionals needing quick load times and seamless workflows.
With two DDR4 DIMM slots, the motherboard supports up to 64GB of dual-channel memory, offering frequencies up to 3200 MHz for 11th Gen processors. Intel Optane Memory compatibility further enhances system responsiveness.
The Realtek GbE LAN chip ensures fast and reliable networking for online gaming and streaming. The board features 6 USB 3.2 Gen 1 ports for high-speed connectivity and 8 USB 2.0/1.1 ports, ensuring compatibility with various devices.
Built with a compact micro-ATX form factor (24.4cm x 22.5cm), the GIGABYTE B560M H is perfect for small to mid-size PC builds. It features durable components and solid capacitors to ensure long-lasting reliability. The inclusion of RGB Fusion technology and customizable LED strip headers allows users to personalize their PC aesthetics effortlessly.
The motherboard also supports high-definition audio with the Realtek Audio Codec, delivering immersive sound with 2/4/5.1/7.1-channel configurations. Its integrated HDMI 2.0 and D-Sub ports provide support for up to 4K@30Hz resolution, making it compatible with modern high-resolution displays.
The GIGABYTE B560M H comes with several intuitive features to simplify PC building and enhance usability. The Q-Flash Plus button allows users to update the BIOS without installing a CPU or memory, making updates straightforward. GIGABYTE’s APP Center offers software tools such as EasyTune for system optimization, Game Boost for improved gaming performance, and Smart Backup for data protection.
Other features include RGB Fusion for lighting control, Fast Boot for quicker system start-ups, and Xpress Install for easy software setup. With support for Windows 10 64-bit, this motherboard ensures compatibility with the latest operating systems.
The GIGABYTE B560M H offers a great balance of performance, features, and affordability for users building gaming, office, or general-purpose PCs. It supports the latest Intel processors, PCIe 4.0, dual M.2 slots, and high-speed memory, ensuring smooth performance. Its compact design, user-friendly features, and customizable RGB lighting make it a versatile choice for both beginners and advanced users.
Get specific details about this product from customers who own it.
