| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation Ryzen with Radeon Vega Graphics processors/ 1st Generation Ryzen with Radeon Vega Graphics processors/ Athlon with Radeon Vega Graphics Processors | |
| Chipset | AMD B450 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 19.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 64 GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. Mas shared memory :16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.2 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/ 100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support) * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 connector. 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

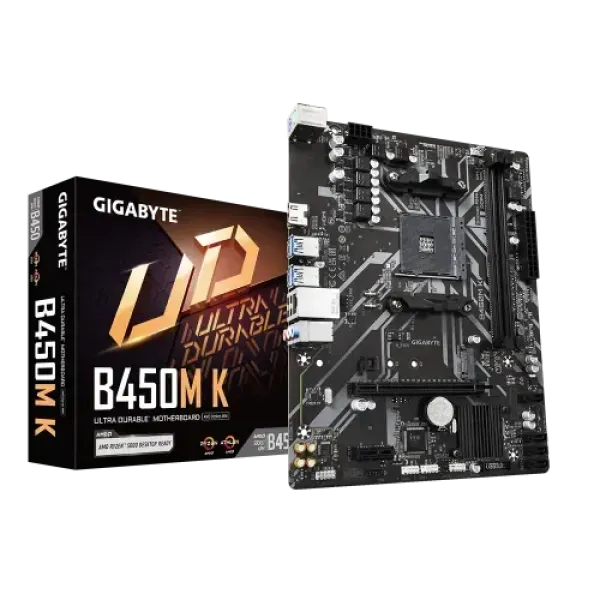

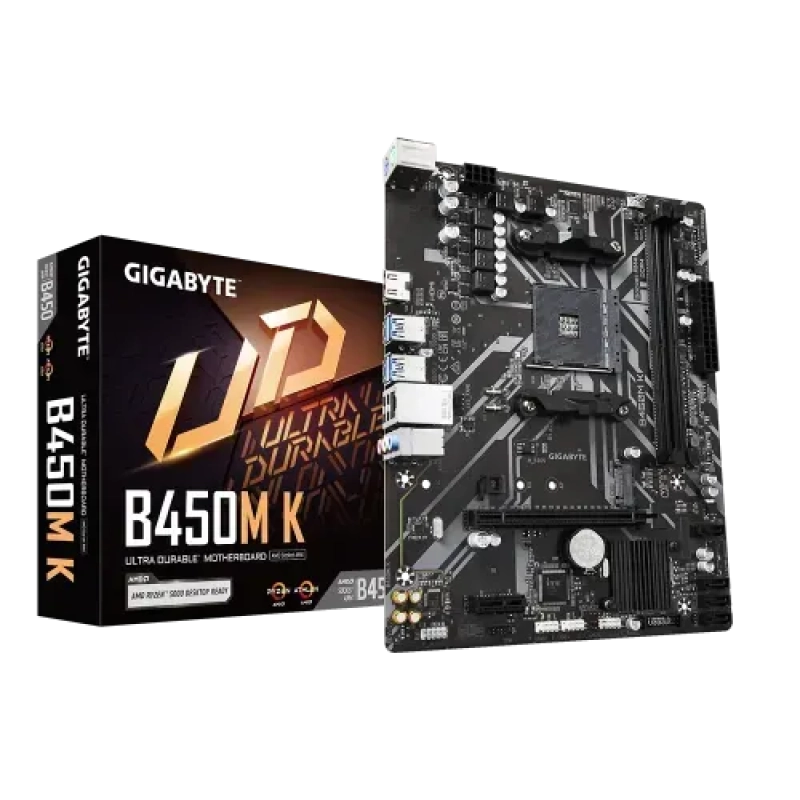

The GIGABYTE B450M K motherboard is a micro-ATX solution designed to support a wide range of AMD AM4 processors, including Ryzen 5000 Series, Ryzen 4000 G-Series, and more. With its compact form factor, reliable chipset, and versatile connectivity, this motherboard is ideal for budget-conscious gamers, casual PC builders, and office setups. Its support for high-speed DDR4 memory, PCIe 3.0, and advanced storage solutions makes it a well-rounded choice for modern computing needs.
Built on the AMD B450 chipset, the GIGABYTE B450M K is compatible with AMD Ryzen 5000 Series processors, ensuring robust performance for both gaming and productivity. It offers dual DIMM slots, supporting up to 64GB DDR4 memory with speeds of up to 3600 MHz (OC). The inclusion of Extreme Memory Profile (XMP) ensures seamless overclocking for enhanced memory performance.
For storage, the motherboard features a PCIe 3.0 x4 M.2 connector, enabling high-speed NVMe SSD installations, as well as 4 SATA 6Gb/s connectors for additional drives. With support for RAID 0, 1, and 10, users can optimize storage for speed, redundancy, or a combination of both.
Expansion slots include one PCIe 3.0 x16 slot for graphics cards and one PCIe 2.0 x1 slot for additional peripherals, providing the flexibility needed for diverse builds.
The GIGABYTE B450M K features a compact micro-ATX form factor (24.4cm x 19.5cm), making it suitable for smaller cases. Despite its size, the motherboard is built to last, incorporating high-quality components and Solid Pin Power Connectors for stable and efficient power delivery.
Its onboard Realtek HD Audio codec supports 7.1-channel surround sound, providing an immersive audio experience. For cooling, the motherboard includes headers for both CPU and system fans, ensuring effective temperature management during extended usage.
The GIGABYTE B450M K simplifies PC building and maintenance with features like Q-Flash, allowing users to update the BIOS without requiring a CPU or memory. The APP Center software provides access to utilities like EasyTune for overclocking, Smart Backup for secure data storage, and System Information Viewer for monitoring system health.
The motherboard also offers multiple connectivity options, including 6 USB 2.0 ports, 6 USB 3.2 Gen 1 ports, and an HDMI 2.0 port supporting resolutions up to 4K@60Hz, making it suitable for high-resolution monitors and multimedia setups. Additionally, the Realtek GbE LAN provides reliable wired internet connectivity with bandwidth management tools.
The GIGABYTE B450M K delivers exceptional value with its robust feature set, compatibility with a wide range of AMD processors, and support for high-speed memory and storage. Whether you're building a compact gaming rig, an office workstation, or a general-purpose PC, this motherboard offers the reliability and performance you need at an affordable price point. Its user-friendly design and advanced software make it an excellent choice for both beginners and experienced PC builders.
