| Basic Information | ||
| Supported CPU | AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors | |
| Chipset | AMD A320 | |
| Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control | |
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors- 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-Series/Athlon X4 Processors - 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon™ with Radeon™ Vega Graphics Processors- 1 x PCIe 3.0/2.0 x16 (x4 mode) AMD A320 chipset- 2 x PCIe 2.0 x1 |
|
| M.2 Socket | 1 x M.2 Socket 3 | |
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM, | |
| Supported Memory | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors 2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
|
| Maximum Memory | Max. 64GB | |
| Others | ||
| Graphics | ||
| Graphics | Multi-VGA output support : HDMI/RGB ports Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
|
| Others | Max Shared Memory 2048 MB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 |
|
| LAN Port (s) | 1 x LAN (RJ45) port(s) | |
| Wireless Communication module | ||
| Supported Storage | AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD 7th Generation A-Series/ Athlon™ X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD Athlon™ with Radeon™ Vega Graphics Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
|
| RAID | ||
| Audio | Back I/O Ports 3 x Audio jack(s) 1 x Front panel audio connector(s) (AAFP) |
|
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
|
| TPM (Trusted Platform Module ) | ||
| Others | 1 x D-Sub | |
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 years | |
| others | ||

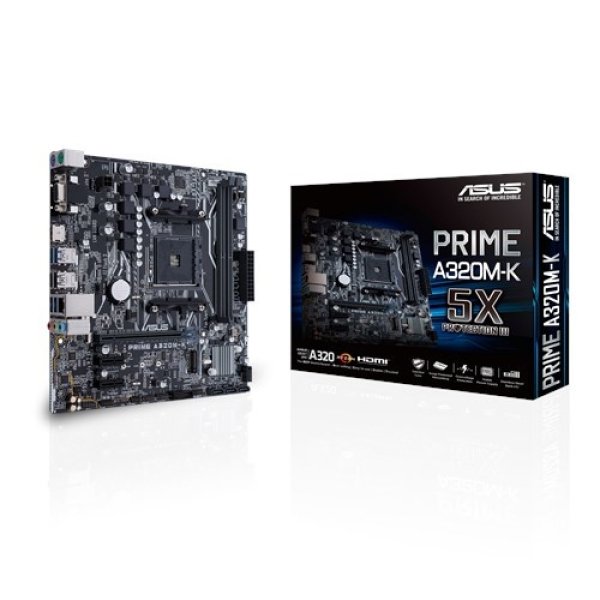

The Asus Prime A320M-K AMD AM4 uATX Motherboard is designed for users seeking a reliable and cost-effective platform for their AMD Ryzen processors. Featuring the AMD A320 chipset, this motherboard provides support for dual DDR4 memory slots with a maximum capacity of 32GB, ensuring smooth operation for multitasking and daily computing tasks.
Built in a compact uATX form factor, the Asus Prime A320M-K is perfect for small PC builds while maintaining essential connectivity options. It offers multiple USB ports, PCIe slots for expansion, and robust power delivery for stable performance. Whether you’re assembling a budget-friendly office PC or a lightweight home setup, this motherboard provides the reliability and efficiency needed for day-to-day tasks.
With Asus’s renowned build quality and user-friendly BIOS, the Prime A320M-K delivers an excellent foundation for a cost-effective AM4 system. If you’re looking for an entry-level motherboard with solid performance, this is a great choice.
Get specific details about this product from customers who own it.
