| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 series/ 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
|
| Chipset | AMD B450 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 2 x PCI Express x1 slots |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET) |
|
| Others | ||
| Memory | ||
| Type | Dual channel memory architecture |
|
| Slots | 4 x DIMM |
|
| Supported Memory | Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI |
|
| USB (s) | Integrated in the CPU: 4 x USB 3.1 Gen 1 ports on the back panel Integrated in the Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) |
|
| Wireless Communication module | ||
| Supported Storage | Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 2 x SATA 6Gb/s connectors (ASATA3 1/2) Integrated in the Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD support) (M2B_SOCKET) 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) |
|
| RAID | ||
| Audio | Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | DVI-D (s) 1 x DVI-D |
|
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 years |
|
| others | ||

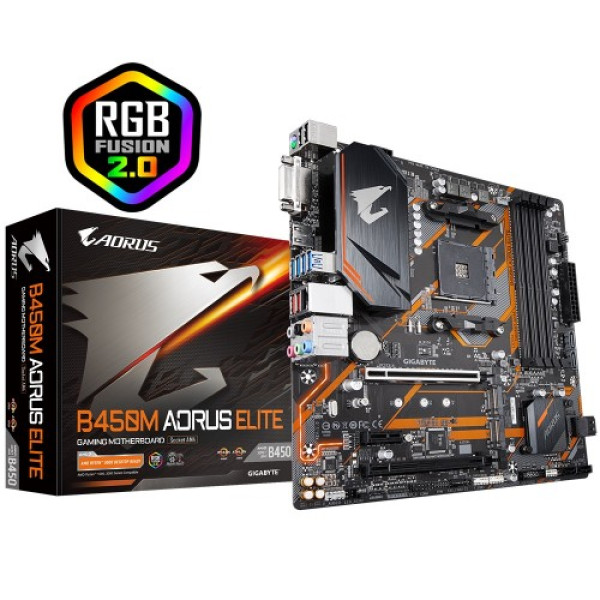

The Gigabyte B450M AORUS Elite AMD Gaming Motherboard is a high-performance micro-ATX motherboard that combines powerful gaming features, fast storage solutions, and efficient power delivery in a compact form factor. Designed to support AMD Ryzen 5000, 3000, and 2000 series processors, this motherboard is ideal for gamers and professionals looking for reliable and high-speed computing.
With 4 x DDR4 slots, supporting up to 128GB of memory, the B450M AORUS Elite ensures efficient multitasking and smooth performance even in demanding applications. The Dual NVMe PCIe Gen3 M.2 slots allow for lightning-fast storage speeds, reducing load times and enhancing overall system responsiveness. Whether you're loading large game files, handling high-resolution video editing, or managing complex workloads, this motherboard delivers unparalleled speed and efficiency.
For gaming enthusiasts, AMD CrossFire support provides the ability to run multiple GPUs, enabling smoother frame rates and enhanced graphics performance. This makes it an excellent choice for those looking to build a high-performance gaming setup without compromising on space.
Built with Gigabyte's Ultra Durable components, this motherboard ensures longevity and reliability, featuring high-quality capacitors and an advanced thermal design for efficient cooling and power stability. With a comprehensive set of connectivity options,
