| Basic Information | ||
| Supported CPU | AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors | |
| Chipset | AMD B450 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio codec High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | Dual channel memory architecture Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.2. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support) * Actual support may vary by CPU. * Supports only M.2 SATA SSDs when using an AMD Athlon-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors |
|
| RAID | Support for RAID 0, RAID 1, and RAID 10 | |
| Audio | 3 x audio jacks | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) | |
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years | |

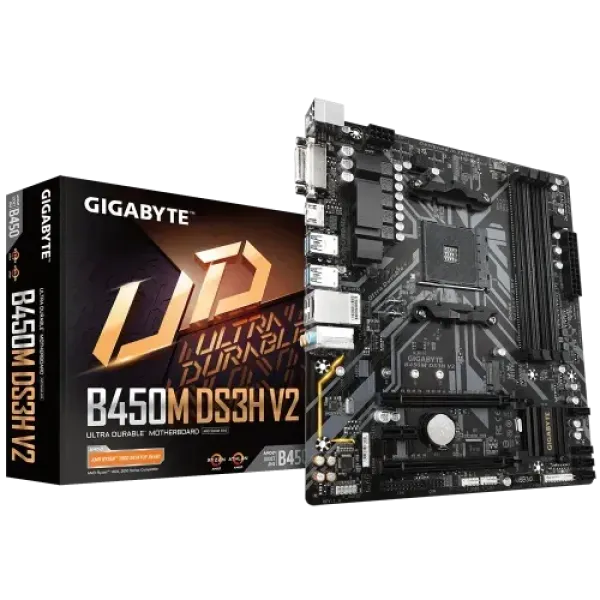

The Gigabyte B450M DS3H V2 is a reliable micro-ATX motherboard designed to support a wide range of AMD processors, from the 1st Gen Ryzen to the latest Ryzen 5000 Series. Built on the AMD B450 chipset, it offers versatile connectivity options, DDR4 memory support, and AMD CrossFire technology. With its compact form factor, this motherboard is an excellent choice for budget gaming builds, everyday computing, or compact workstations.
The Gigabyte B450M DS3H V2 is powered by the AMD B450 chipset, supporting AM4 processors, including AMD Ryzen 5000 Series, Ryzen with Radeon Vega Graphics, and Athlon processors. It accommodates DDR4 memory with speeds up to 3600 MHz (OC), offering up to 128GB system memory.
For storage, the motherboard features an M.2 connector supporting PCIe x4 and SATA SSDs for ultra-fast data transfer speeds, as well as 4 SATA 6Gb/s connectors for additional drives. RAID 0, 1, and 10 support ensures enhanced performance and data redundancy.
Expansion options include one PCIe 3.0 x16 slot, one PCIe x16 (x4) slot, and one PCIe x1 slot, enabling multiple configurations for graphics cards and other peripherals. Additionally, the motherboard supports AMD Quad-GPU CrossFire and 2-Way CrossFire for multi-GPU setups.
The Gigabyte B450M DS3H V2 features a compact micro-ATX form factor, measuring 24.4cm x 21.5cm, making it ideal for smaller builds. Its RGB Fusion technology allows for customizable lighting effects, which can sync with LED strips through the onboard RGB header, adding a touch of personalization to your PC.
Designed for reliability, the motherboard includes Smart Fan 5 technology, ensuring optimal cooling with temperature monitoring and customizable fan speed profiles. The Solid Pin Power Connectors enhance power stability and durability, providing reliable performance under heavy workloads.
The Gigabyte B450M DS3H V2 is packed with features to make PC building and maintenance simple. It includes Q-Flash technology, allowing users to update the BIOS without needing a CPU or memory. The EasyTune software provides intuitive overclocking controls, while System Information Viewer offers detailed monitoring of system health.
For connectivity, the motherboard has multiple USB options, including 4 USB 3.1 Gen 1 ports and 8 USB 2.0 ports (4 rear, 4 via internal headers). Integrated audio powered by the Realtek HD Audio codec supports up to 7.1-channel sound, ensuring an immersive media experience. Networking is handled by the Realtek GbE LAN chip, providing reliable and fast Ethernet connectivity.
The Gigabyte B450M DS3H V2 stands out for its exceptional value and compatibility. Its support for a wide range of AMD processors, DDR4 memory, and M.2 SSDs makes it a versatile choice for gamers and PC enthusiasts. Whether you're building a budget gaming rig, a compact workstation, or a general-purpose PC, this motherboard delivers solid performance, durable construction, and user-friendly features.
