| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
|
| Chipset | AMD A520 | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/x2 SSD support) |
|
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM sockets |
|
| Supported Memory | AMD Ryzen 5000 series processors/ 3rd Generation AMD Ryzen: Support for 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128 GB (32 GB single DIMM capacity) | |
| Others | ||
| Graphics | ||
| Graphics | Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x DVI-D port, supporting a maximum resolution of 1920 x 1200 @60 Hz 1 x DisplayPort, supporting a maximum resolution of 5120 x 2880 @60 Hz 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @60 Hz Support for up to 3 displays at the same time |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| USB (s) | 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
|
| Wireless Communication module | Intel Wi-Fi 3168 WIFI 802.11a/b/g/n/ac, supporting 2.4/ 5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280 SATA and PCIe 3.0 x4/ x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| RAID | ||
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper 1 x Q-Flash Plus button |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz DVI-D (s) 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
|
| Others | ||
| Special Features | Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Years | |
| others | ||

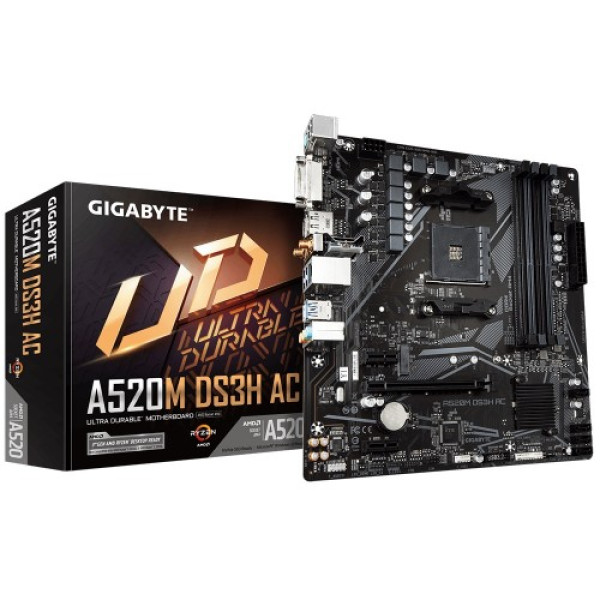

The GIGABYTE A520M DS3H AC Ultra Durable Micro-ATX Motherboard is a feature-packed solution for gaming, office, and home PC builds, offering powerful performance, stability, and efficient cooling. Compatible with AMD Ryzen 5000, 4000G, and 3rd Gen processors, this AM4 motherboard provides a solid foundation for mainstream and budget-friendly builds.
Engineered with a 5+3 phases pure digital VRM, the A520M DS3H AC ensures reliable power delivery to the CPU, allowing smooth multitasking and efficient system operation. It supports RGB Fusion 2.0, enabling customizable RGB lighting effects for a personalized PC build experience.
For optimal cooling, the Smart Fan 5 technology offers multiple temperature sensors and hybrid fan headers, ensuring efficient heat dissipation even during heavy workloads or gaming sessions. The motherboard also features high-quality audio capacitors and audio noise guards to deliver an immersive and crystal-clear sound experience.
With multiple connectivity options, including high-speed USB ports, PCIe slots, and NVMe M.2 storage support, the A520M DS3H AC is well-equipped for fast data transfer and expandability. The built-in Wi-Fi AC module provides wireless connectivity, making it a versatile choice for modern setups.
Whether you're building a reliable gaming PC, an efficient workstation, or an everyday computing system, the GIGABYTE A520M DS3H AC Ultra Durable Micro-ATX Motherboard offers great value, durability, and performance for your AM4-based system.
