| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 2 | |
| Supported Memory | Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|
| Wireless Communication module | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks |
|
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| Others | 1 x D-Sub port |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years |
|
| others | ||

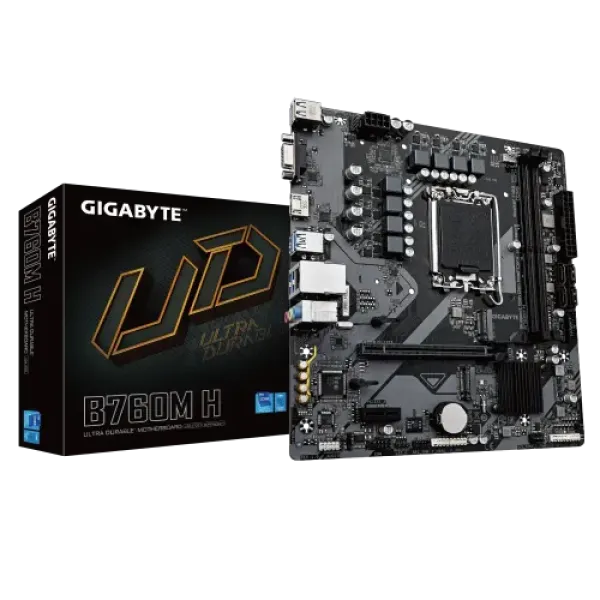

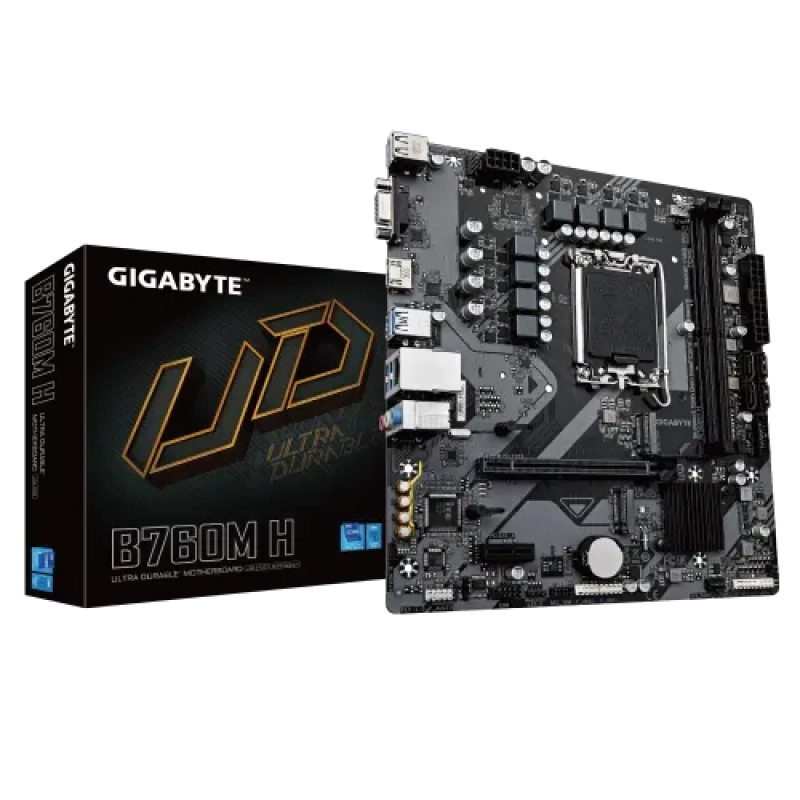

The GIGABYTE B760M H DDR5 Micro-ATX Motherboard is built to handle the latest Intel 14th, 13th, and 12th Gen processors, providing an efficient and powerful platform for modern computing. Featuring the Intel B760 chipset, this motherboard is optimized for fast processing, seamless multitasking, and enhanced system stability, making it an excellent choice for gamers, content creators, and professionals.
With support for DDR5 memory at speeds up to 8000MHz (O.C.), this board delivers higher bandwidth, lower power consumption, and improved efficiency over previous-generation DDR4 memory. It supports a maximum of 128GB RAM, allowing users to handle high-performance applications, complex simulations, and demanding workloads with ease.
For display connectivity, the GIGABYTE B760M H DDR5 includes both HDMI and D-Sub ports, offering versatile options for multi-monitor setups and high-resolution displays. Whether you're gaming, editing videos, or working on detailed graphical projects, this motherboard provides stunning visuals and smooth performance.
Networking is powered by the Realtek GbE LAN chip, ensuring fast, stable, and efficient wired connections with speeds up to 1Gbps. This feature makes the motherboard ideal for online gaming, video streaming, and data-intensive applications.
Designed with Gigabyte’s Ultra Durable technology, the B760M H DDR5 is built for long-term reliability and stability. With high-quality components, advanced thermal design, and optimized power delivery, this motherboard ensures that your system remains cool and efficient even under heavy workloads.
Whether you're building a gaming PC, a workstation, or an everyday computing rig, the GIGABYTE B760M H DDR5 provides a solid foundation with next-gen technology, high-speed memory support, and seamless connectivity.
Get specific details about this product from customers who own it.
