| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 2 |
|
| Supported Memory | Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory module |
|
| Maximum Memory | Supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
|
| Others | ||
| Graphics | ||
| Graphics | Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| USB (s) | Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
|
| Wireless Communication module | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
| Others | Display Port (s) 1 x DisplayPort D-Sub (s) 1 x D-Sub port |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years Warranty | |
| others | ||

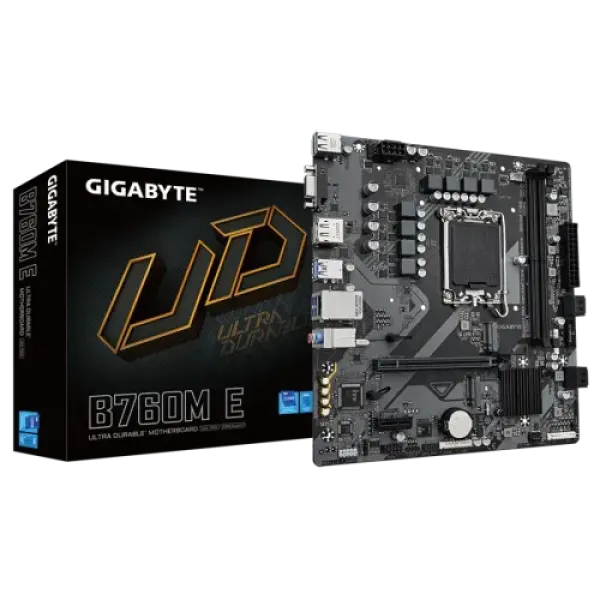

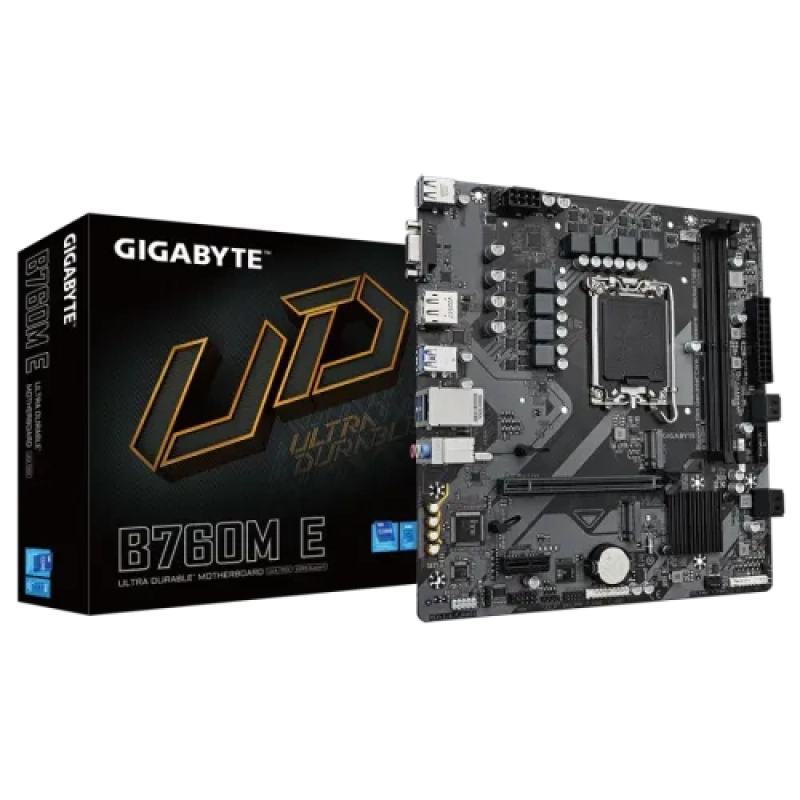

The GIGABYTE B760M E DDR5 Micro-ATX Motherboard is an excellent choice for users looking to build a high-performance PC with the latest Intel processors. Compatible with Intel’s 14th, 13th, and 12th Gen CPUs, this LGA1700-based motherboard ensures top-tier processing power for gaming, creative work, and productivity tasks.
One of the standout features of this motherboard is its support for DDR5 memory, allowing for a maximum of 128GB at speeds of up to 7200MHz (OC). This ensures ultra-fast data transfer rates, improved multitasking capabilities, and a smoother overall experience, whether you're playing demanding games, rendering high-resolution videos, or handling intensive workloads.
For graphics connectivity, the B760M E DDR5 motherboard is equipped with HDMI, DisplayPort, and D-Sub ports, ensuring compatibility with both modern and older display setups. Whether you're using a high-refresh-rate gaming monitor or a multi-monitor workstation, this motherboard provides the flexibility needed for any build.
Connectivity is enhanced by the Realtek GbE LAN chip, which provides high-speed, low-latency networking for online gaming, video streaming, and professional tasks. The Gigabyte Ultra Durable components ensure long-lasting reliability, enhanced cooling, and stable power delivery for consistent and efficient performance under heavy loads.
Built for enthusiasts and power users, the GIGABYTE B760M E DDR5 motherboard is a future-ready, high-speed, and durable choice for any PC build. Whether you're a gamer, content creator, or professional user, this motherboard delivers outstanding performance, ensuring your system runs at peak efficiency.
