| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm |
|
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | up to 64GB (32 GB single DIMM capacity) of system memory |
|
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| USB (s) | - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
|
| Wireless Communication module | ||
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | 1x D-Sub | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

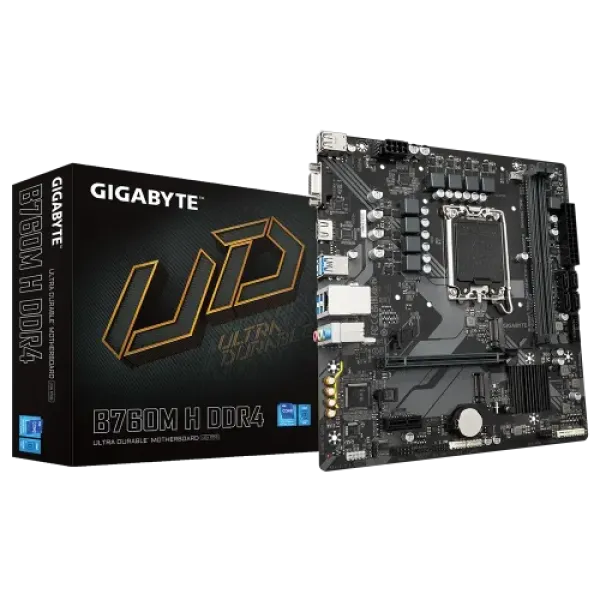

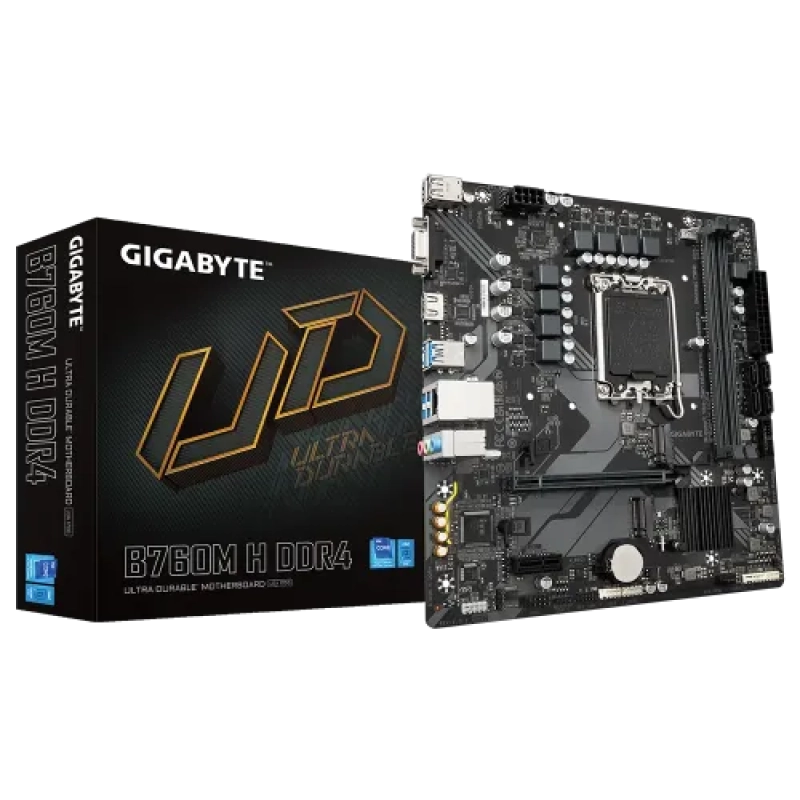

The GIGABYTE B760M H DDR4 Micro-ATX Motherboard is an excellent choice for users looking for reliability, efficiency, and affordability. Supporting Intel's 14th, 13th, and 12th Gen processors, this LGA1700-based motherboard ensures high compatibility with modern CPUs, making it ideal for gaming rigs, office setups, and home PCs.
With two DDR4 DIMM slots supporting up to 64GB of RAM at speeds of 3200MHz, this motherboard guarantees smooth multitasking, fast load times, and improved system responsiveness. Whether you're gaming, working with creative applications, or simply handling day-to-day computing tasks, the B760M H DDR4 motherboard delivers solid performance.
For display connectivity, the motherboard is equipped with both HDMI and D-Sub (VGA) ports, allowing users to connect to modern and legacy display devices effortlessly. This makes it suitable for multi-monitor setups, enhancing productivity and gaming experiences.
Network stability is enhanced with the Realtek GbE LAN chip, ensuring high-speed, low-latency connections for uninterrupted gaming, streaming, and professional workloads.
Built with GIGABYTE Ultra Durable components, the B760M H DDR4 motherboard provides excellent durability, power efficiency, and long-lasting performance. It also incorporates advanced cooling features and solid power delivery, ensuring stable operation even under heavy workloads.
If you're looking for a cost-effective yet powerful motherboard that balances performance, reliability, and future-proofing, the GIGABYTE B760M H DDR4 is a fantastic choice for your next PC build.
