| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors | |
| Chipset | AMD B550 Chipset | |
| Form Factor | ||
| BIOS | ||
| Audio | Realtek ALC892/ALC897 Codec | |
| Others | ||
| Expansion Slots | ||
| PCI | PCI-E X16 x 1 PCI-E (Gen4 / Gen3) |
|
| M.2 Socket | 1 x M.2 Socket | |
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 1x PCIe 3.0 x1 slot 1 1x PCIe 4.0/3.0 x16 slot The supported specification depends on the installed processor. |
|
| Supported Memory | 2x DDR4 memory slots, support up to 64GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Dual-channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz Available for the processor with integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Others | Max Shared Memory 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | AMD B550 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back pane |
|
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN | |
| Wireless Communication module | ||
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 4.0/ 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices The supported specification depends on the installed processor. Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage device |
|
| RAID | ||
| Audio | 7.1-Channel High Definition Audi | |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Others | ||
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Years Warranty | |
| others | ||

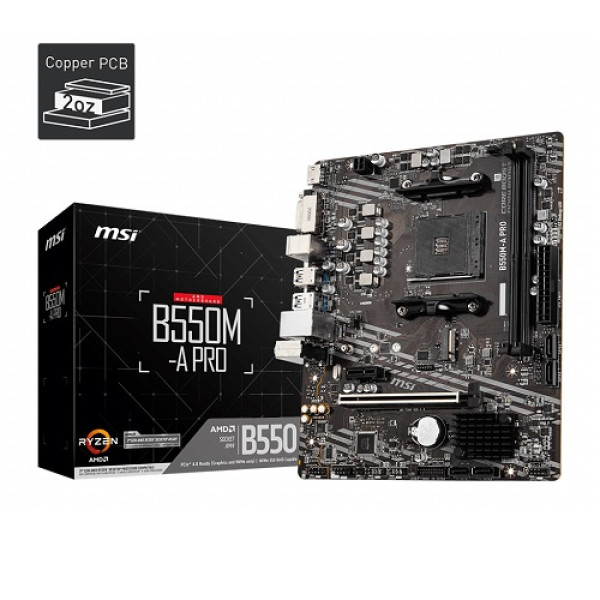

Experience next-level performance with the MSI B550M-A PRO AMD AM4 Micro ATX Motherboard, designed for AMD Ryzen 3000 & 5000 series processors. Featuring PCIe 4.0, dual-channel DDR4 (up to 128GB), high-speed M.2 SSD support, and USB 3.2 connectivity, this motherboard delivers fast and stable performance for gaming, business, and creative workloads. Built with Core Boost, Audio Boost, and premium thermal solutions, it ensures efficient power delivery and superior durability. Whether you're building a budget gaming PC or a professional workstation, the MSI B550M-A PRO offers excellent value. Buy now from Four Star IT at the best price in Bangladesh and enjoy nationwide delivery.
