| Basic Information | ||
| Supported CPU | Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors 6 Power Phase design |
|
| Chipset | AMD B550 | |
| Form Factor | - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design |
|
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustment |
|
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection |
|
| Expansion Slots | ||
| M.2 Socket | 1 x Hyper M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) | |
| Memory | ||
| Type | DDR4 | |
| Slots | AMD Ryzen series CPUs (Matisse) - 1 x PCI Express 4.0 x16 Slot (PCIE1: x16 mode) AMD Ryzen series APUs - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) - 1 x PCI Express 3.0 x1 Slot |
|
| Supported Memory | - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - AMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory - AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory |
|
| Maximum Memory | Max. capacity of system memory: 64GB | |
| Graphics | ||
| Graphics | - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* - DirectX 12, Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.** - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft PlayReady |
|
| Others | 64GB Max Shared Memory | |
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) |
|
| LAN Port (s) | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| Supported Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug | |
| Audio | 7.1 CH HD Audio (Realtek ALC887 Audio Codec) Supports Surge Protection |
|
| Internal I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x DVI-D Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | - 1 x SPI TPM Header | |
| Others | D-Sub (s) 1 x D-Sub Port DVI-D (s) 1 x DVI-D Port |
|
| Others | ||
| Special Features | ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
|
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |

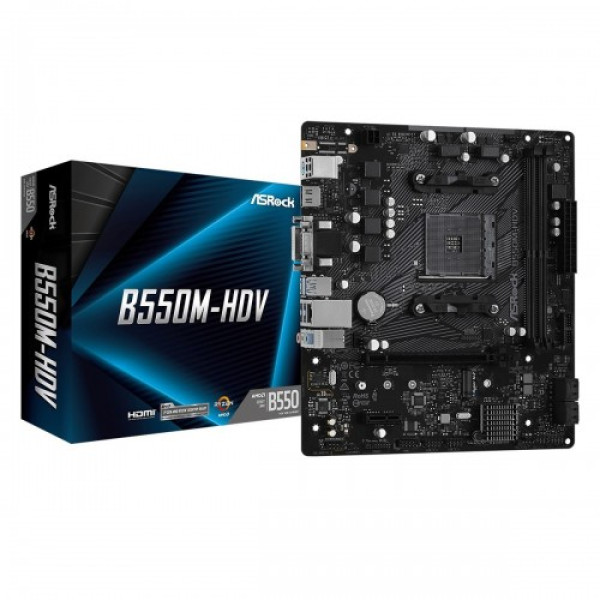

The ASRock B550M-HDV DDR4 AMD Micro ATX Motherboard is a feature-rich and high-performance solution for users seeking stability, speed, and expandability. Designed for 3rd Gen AMD Ryzen and future AM4 processors, it supports DDR4 memory up to 4733+MHz (OC), allowing for seamless multitasking, gaming, and high-speed data processing. With four SATA3 ports and a Hyper M.2 slot, this motherboard offers ample storage options with lightning-fast read and write speeds. The 6 Power Phase Design ensures consistent and stable power delivery, preventing power fluctuations and enhancing system longevity. Its Micro ATX form factor makes it an excellent choice for compact builds while still offering PCIe expansion slots for graphics cards and additional peripherals. Whether you're building a budget-friendly gaming rig or a reliable workstation, the ASRock B550M-HDV provides exceptional performance, reliability, and connectivity. With ASRock's trusted quality and durable components, this motherboard is a smart choice for modern PC builders.
