Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳36,890
| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU |
|
| Chipset | Intel Z890 Express Chipset | |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
|
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
|
| Maximum Memory | up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
|
| Others | ||
| Connector & Ports | ||
| HDMI | ||
| USB (s) | ||
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
| Wireless Communication module | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.) |
|
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 3 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
|
| Others | 1 x DisplayPort | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 Year | |
| others | ||

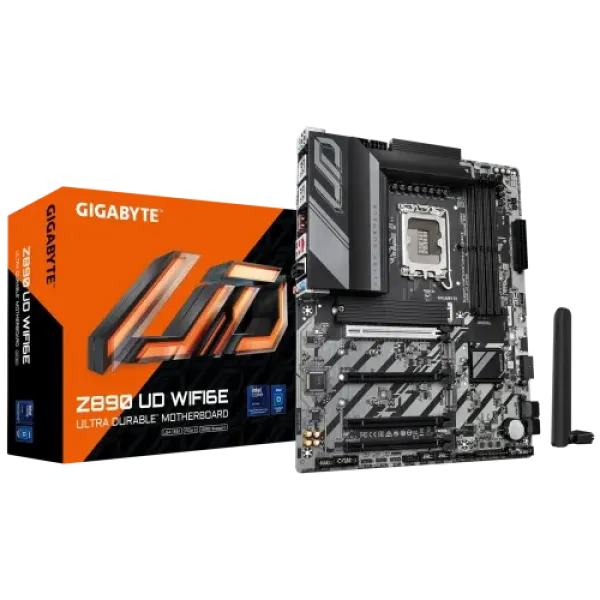

The Gigabyte Z890 UD WIFI6E ATX Motherboard is engineered to push the limits of modern computing, supporting the latest Intel Core Ultra Series 2 Processors on the LGA1851 socket. This motherboard offers next-level performance for gaming, content creation, and workstation tasks, ensuring unparalleled speed, stability, and future-ready features.
With four DDR5 DIMM slots, it supports up to 256GB of high-speed DDR5 RAM, with overclocking speeds reaching an incredible 9200MHz (O.C.). Whether you’re gaming, streaming, or working on resource-intensive applications, this motherboard delivers seamless multitasking and superior system responsiveness.
For graphics and display output, the Z890 UD WIFI6E includes USB4 Type-C and DisplayPort, enabling high-resolution displays, faster data transfers, and enhanced external connectivity. Gamers and creators will appreciate future-proof expansion options, ensuring smooth performance for high-end GPUs and peripherals.
The motherboard is equipped with three M.2 slots, providing ultra-fast NVMe PCIe storage capabilities, reducing load times, and improving system performance. PCIe 5.0 support ensures lightning-fast GPU and SSD speeds, perfect for gaming rigs and high-end workstations.
For next-generation wireless connectivity, this model features Wi-Fi 6E and Bluetooth 5.3, offering faster wireless speeds, improved signal stability, and lower latency for gaming and streaming. High-speed networking is further enhanced with Gigabyte’s optimized LAN support, ensuring low-latency online gaming and seamless downloads.
Designed with Gigabyte’s Ultra Durable technology, the Z890 UD WIFI6E includes high-quality power delivery components, enhanced cooling solutions, and comprehensive BIOS tuning options, ensuring stability, longevity, and maximum performance under heavy workloads.
Whether you’re a gamer, overclocker, or professional user, the Gigabyte Z890 UD WIFI6E offers cutting-edge performance, premium connectivity, and advanced expansion capabilities, making it an ideal choice for high-end PC builds.
