| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors (Series 2) |
|
| Chipset | Intel Z890 Chipset |
|
| Form Factor | E-ATX Form Factor; 30.5cm x 28.5cm | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | ESS ES9260 CODEC (rear panel audio) - High Definition Audio - 2-channel Realtek ALC897 CODEC (front panel audio) |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
| M.2 Socket | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB) - 4 x SATA 6Gb/s connectors (SATA3 4~7) Chipset+ASMedia® ASM1164 chip: - 4 x SATA 6Gb/s connectors (SATA3 0~3) |
|
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module |
|
| Maximum Memory | 256GB | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor+Intel® Thunderbolt 5 Controller: - 2 x Intel Thunderbolt 5 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 7680x4320@60 Hz (single display output) Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.) Support for up to triple-display at the same time |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| USB (s) | Chipset+Intel® Thunderbolt™ 5 Controller: - 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel *Support up to 80Gbps with Thunderbolt devices *Support up to 40Gbps with USB4 devices *Support up to 20Gbps with USB 3.2 devices CPU: - 1 x USB4® USB Type-C® port onboard - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 3.2 Gen 2 Hub: - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | 2 x Marvell AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
|
| Wireless Communication module | Intel Wi-Fi 7 BE200 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 320MHz wireless standard |
|
| Supported Storage | - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | 2 x audio jacks |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header Back Panel Connectors 1 x DisplayPort In port 1 x HDMI port (Note) 2 x audio jacks 2 x Intel® Thunderbolt 5 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 1 ports 6 x USB 3.2 Gen 2 Type-A ports (red) 2 x antenna connectors (2T2R) 2 x RJ-45 ports |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
|
| Others | ||
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Details | ||
| Warranty Details | 3 Year Warranty |
|
| others | ||

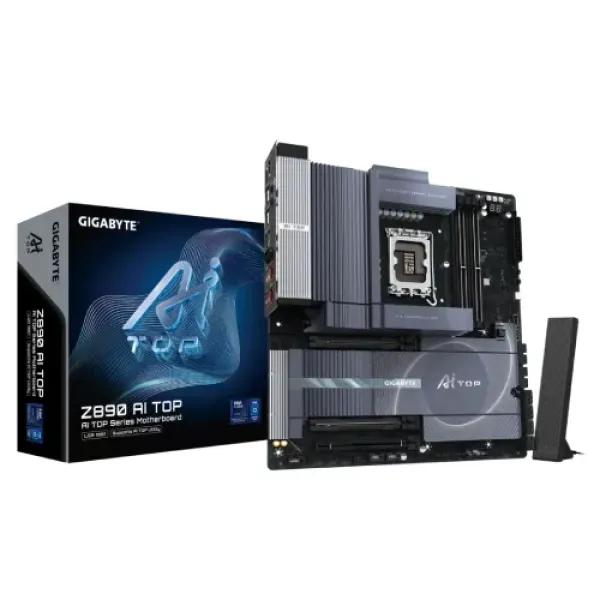

The Gigabyte Z890 AI TOP WIFI7 EATX Motherboard is a powerhouse built for AI computing, high-performance gaming, and professional workloads. Engineered to support Intel Core Ultra Series 2 processors on the LGA 1851 socket, this EATX motherboard offers unparalleled performance, expandability, and next-generation connectivity for demanding users and enthusiasts.
Designed for ultra-fast memory speeds, the Z890 AI TOP supports DDR5 RAM up to 256GB, with overclocking capabilities reaching an astounding 9500MHz (O.C.). Whether for extreme gaming, AI workloads, 3D rendering, or content creation, this motherboard ensures unmatched system responsiveness and smooth multitasking.
For graphics and display output, it features 1x HDMI and 1x Intel Thunderbolt 4 connector (USB4 Type-C with DisplayPort support), enabling high-resolution video output, seamless multi-monitor setups, and ultra-fast data transfer speeds for professional applications.
Equipped with PCIe 5.0 support, the Z890 AI TOP is ready for the fastest GPUs, storage devices, and expansion cards, ensuring blazing-fast speeds and future-proof performance. The motherboard also includes 4x M.2 slots, enabling ultra-fast PCIe NVMe SSD storage, significantly reducing load times and improving system efficiency for intensive applications.
One of its standout features is Intel Wi-Fi 7 and Bluetooth 5.4, delivering lightning-fast wireless connectivity, ultra-low latency, and enhanced network stability. Whether you're gaming, streaming, or handling large file transfers, this motherboard ensures seamless, high-speed networking.
Built with Gigabyte’s Ultra Durable technology, the Z890 AI TOP WIFI7 is crafted with high-end VRM components, robust power delivery, advanced cooling solutions, and a highly customizable BIOS, ensuring efficient heat dissipation, extreme performance, and long-term reliability under demanding conditions.
Whether you're building a next-generation AI workstation, an ultra-high-end gaming rig, or a professional creative system, the Gigabyte Z890 AI TOP WIFI7 EATX Motherboard delivers exceptional power, connectivity, and cutting-edge technology for ultimate computing dominance.
