Pay cash discounted price and save
Pay cash discounted price and save
| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel Z790 Chipset | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4.) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| USB (s) | Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3 |
|
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|
| Audio | 5 x Gold-plated audio jacks |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Start button 1 x Thermal Sensor header 1 x Thunderbolt header |
|
| TPM (Trusted Platform Module ) | ||
| Others | 1 x DisplayPort |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support - Support: up to 30W charging - Output: 5/9V max. 3A, 12V max. 2.5A - Compatible with PD3.0 |
|
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

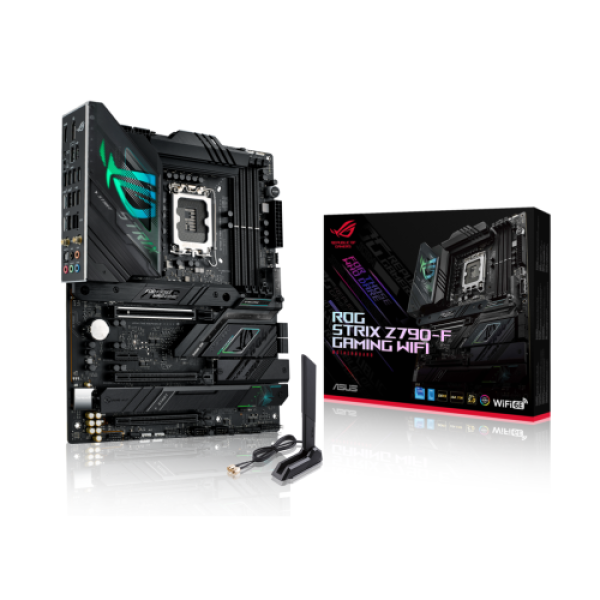

The ASUS ROG STRIX Z790-F GAMING WIFI ATX Motherboard is a powerhouse for gamers and creators who demand cutting-edge performance, high-speed connectivity, and robust cooling. Built on the Intel Z790 chipset, this motherboard supports the latest Intel 14th, 13th, and 12th Gen processors with LGA1700 compatibility, ensuring incredible computing power for demanding applications and gaming.
Equipped with four DDR5 DIMM slots supporting up to 128GB of RAM at speeds of 7800+(OC), this motherboard allows for extreme memory performance and seamless multitasking. The inclusion of PCIe 5.0 ensures faster data transfer and maximum performance for next-gen GPUs and storage devices.
With four M.2 slots and multiple high-speed USB ports, including USB-C, the ROG STRIX Z790-F provides extensive expansion options for high-speed NVMe storage and external peripherals. The integrated Wi-Fi 6E and Bluetooth 5.3 offer ultra-fast wireless connectivity, while the Intel 2.5Gb Ethernet ensures low-latency online gaming and streaming.
For immersive visuals, this motherboard includes both DisplayPort and HDMI, allowing for high-resolution multi-monitor setups. The premium cooling solutions—featuring large VRM heatsinks, hybrid fan headers, and AI cooling—help maintain stable performance under heavy loads.
The ASUS ROG STRIX Z790-F GAMING WIFI is packed with advanced gaming features, including AI Overclocking, AI Noise Cancellation, Aura Sync RGB lighting, and premium SupremeFX audio. Designed for gamers, overclockers, and enthusiasts, this motherboard offers unbeatable performance, superior connectivity, and top-tier durability for any high-end gaming rig.
Get specific details about this product from customers who own it.
