| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
|
| Chipset | Intel Z790 Chipset |
|
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| Others | ||
| Expansion Slots | ||
| PCI | Intel CoreTM Processors (14th & 13th & 12th Gen) 1 x PCIe 5.0 x16 slot (support x16 mode) Intel Z790 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode) |
|
| M.2 Socket | 5 x M.2 slots | |
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM |
|
| Supported Memory | 8000+(OC)/7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) memory module Supports DIMM Flex OptiMem II ASUS Enhanced Memory Profile II (AEMP II) |
|
| Maximum Memory | 192GB | |
| Others | ||
| Graphics | ||
| Graphics | Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1 x HDMI port |
|
| USB (s) | Rear USB (Total 12 ports) 1 x USB 20Gbps port (1 x USB Type-C) 11 x USB 10Gbps ports (10 x Type-A + 1 x USB Type-C) Front USB (Total 11 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )** 2 x USB 5GGps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A ** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Wireless Communication module | Intel Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 160MHz bandwidth, up to 2.4Gbps transfer rate. Bluetooth® v5.4 |
|
| Supported Storage | Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports Intel CoreTM Processors (14th & 13th & 12th Gen) M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel Z790 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. |
|
| Audio | 5 x Gold-plated audio jacks |
|
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge) 2 x USB 5Gbps headers support 4 additional USB 5G ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alternation PCIe Mode Switch 1 x AURA RGB header 1 x CPU over voltage jumper 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header |
|
| TPM (Trusted Platform Module ) | ||
| Others | 1 x DisplayPort |
|
| Others | ||
| Special Features | Extreme OC Kit - Start button Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Front Panel USB 20Gbps with PD Fast Charge Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3A, 12V max 2.5A - Compatible with PD3.0 |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Sonic Studio - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization with AI Overclocking - TPU - DIGI+ VRM - Turbo app - PC Cleaner MyAsus USB Wattage Watcher Intel Unison Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey MemTest86 |
|
| Warranty Details | ||
| Warranty Details | 3 years warranty | |
| others | ||

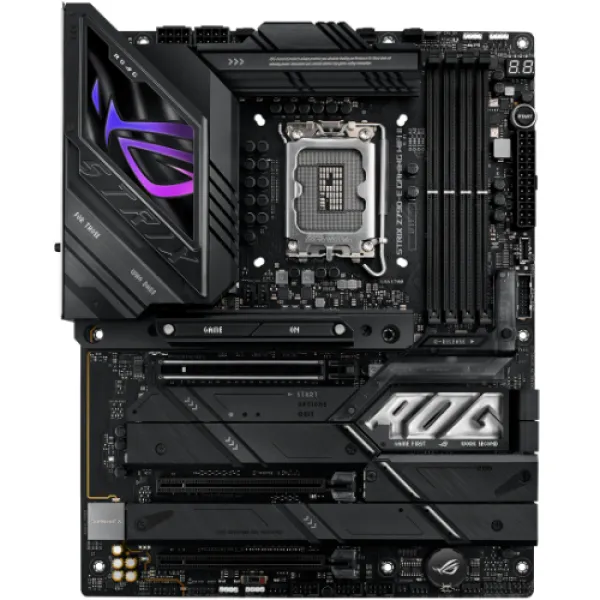

Take your gaming experience to the next level with the ASUS ROG STRIX Z790-E GAMING WIFI II DDR5 ATX Motherboard, a powerhouse designed for high-performance gaming and overclocking. Equipped with the Intel Z790 chipset and LGA1700 socket, this motherboard supports Intel 14th, 13th, and 12th Gen processors, ensuring seamless compatibility with the latest CPUs.
With four DDR5 DIMM slots, it supports up to 192GB of RAM with speeds reaching an incredible 8000+ MHz (OC), providing extreme responsiveness and smooth multitasking. The inclusion of PCIe 5.0 guarantees high-speed data transfer, perfect for future-proofing your system for next-generation GPUs and NVMe SSDs.
Experience next-gen connectivity with Intel Wi-Fi 7 for ultra-low latency and faster wireless speeds, along with Intel 2.5Gb Ethernet for high-bandwidth wired networking. The motherboard also features multiple M.2 slots with heatsinks, ensuring high-speed SSD performance while keeping temperatures in check.
For superior cooling and power delivery, the ASUS ROG STRIX Z790-E GAMING WIFI II boasts a robust VRM design, high-quality capacitors, ProCool II power connectors, and an AI Cooling system that dynamically optimizes thermal performance. With AI Overclocking and AI Networking, it intelligently enhances system stability and efficiency.
The ROG STRIX Z790-E GAMING WIFI II also features customizable Aura Sync RGB lighting, premium audio with SupremeFX technology, and a host of gaming-centric enhancements, making it the ultimate choice for gamers and PC enthusiasts looking for peak performance. Whether you're pushing the limits of overclocking or building a high-end gaming rig, this motherboard delivers cutting-edge technology, superior reliability, and the ultimate gaming experience.
