Description

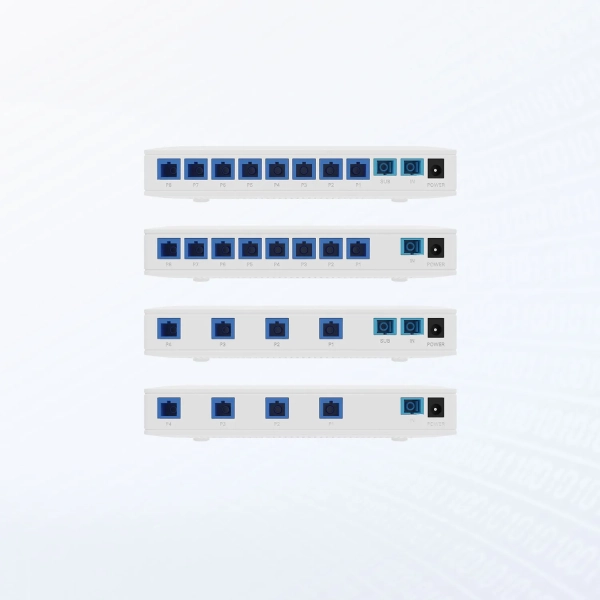

Vsol V180XP Series PoF Optical Power Splitter – Reliable Fiber Distribution for FTTH & FTTx Networks

The Vsol V180XP Series PoF Optical Power Splitter is a high-performance fiber distribution solution designed for modern FTTH and FTTx deployments. Engineered for stable optical signal transmission and efficient power distribution, this splitter supports a wide wavelength range of 1260–1650nm and delivers low insertion loss with excellent uniformity.

Whether you are expanding ISP infrastructure or building a new fiber network, the V180XP Series ensures consistent performance, flexible installation, and long-term reliability.

Key Features of Vsol V180XP Series PoF Optical Power Splitter

• Supports wide wavelength range: 1260–1650nm

• Available in 4-port and 8-port output configurations

• Low insertion loss for stable signal transmission

• Excellent return loss (≥50dB) and directionality (≥55dB)

• PoF (Power over Fiber) support

• SC/UPC and SC/APC interface options

• Compact design with desktop and wall-mount installation

• Reliable operation in varying temperature conditions

Optical Performance Specifications

The V180XP Series is built to minimize signal attenuation while maintaining uniform power distribution across output ports.

Insertion Loss of Output Port (dB)

• ≤7.8

• ≤10.9

• ≤15.6

• ≤16.5

Insertion Loss of Cascade Port (dB)

• ≤1.8

• ≤2.3

Optical Characteristics

• Uniformity: ≤0.7dB / ≤1.0dB

• Polarization Related Loss (PDL): ≤0.3dB

• Return Loss: ≥50dB

• Directionality: ≥55dB

• Operating Wavelength Range: 1260–1650nm

These specifications ensure efficient and balanced signal distribution, making it suitable for GPON, EPON, and other passive optical network systems.

Power & Output Configuration

The V180XP Series supports PoF technology, allowing both optical signal and power transmission through fiber infrastructure.

• Number of Outputs: 4 or 8

• Power Supply (4 Outputs): ≤60W

• Power Supply (8 Outputs): ≤130W

This makes it ideal for structured fiber environments where simplified power distribution is required.

Environmental & Physical Specifications

Designed for durability and stable operation in indoor networking environments:

• Operating Temperature: -20℃ to +45℃

• Storage Temperature: -20℃ to +55℃

• Dimensions: 180mm × 120mm × 26mm

• Installation Method: Desktop or Wall Mounted

• Interface Type: SC/UPC, SC/APC

The compact size allows easy integration into network cabinets, distribution boxes, or wall-mounted setups.

Applications of Vsol V180XP Series PoF Splitter

• FTTH (Fiber to the Home) deployment

• FTTx network infrastructure

• ISP broadband expansion projects

• Enterprise fiber distribution systems

• Passive Optical Network (PON) environments

Why Choose Vsol V180XP Series PoF Optical Power Splitter?

The V180XP Series combines low insertion loss, high return loss, wide wavelength compatibility, and reliable PoF support in a compact form factor. It ensures stable signal transmission, efficient power management, and long-term network performance.

For ISPs, network engineers, and enterprise deployments looking for a dependable optical splitting solution, the Vsol V180XP Series delivers consistent fiber distribution with professional-grade performance.
