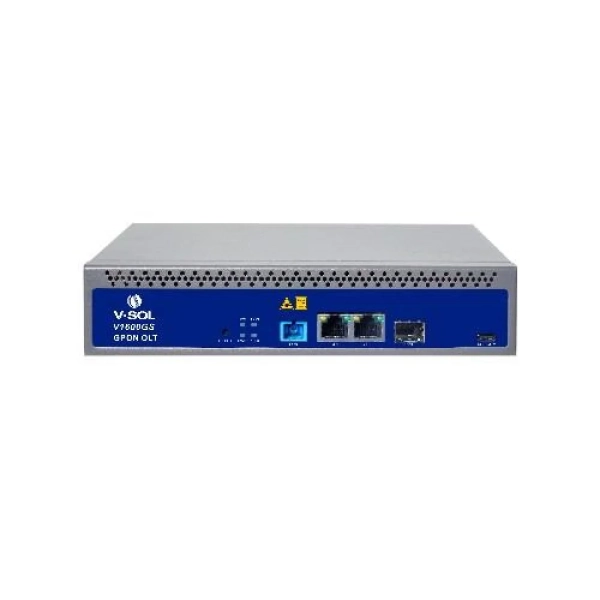

VSOL V1600GS-F Single PON GPON OLT (1U Rackmount)

The VSOL V1600GS-F is a compact and high-performance Single PON GPON OLT designed for small to medium FTTH deployments. With powerful uplink flexibility, 1:128 splitting support, and 20KM transmission distance, this 1U rackmount OLT delivers reliable fiber access for ISP networks.

If you’re building or expanding a GPON infrastructure and want strong performance without going overboard on hardware, this unit hits the sweet spot.

Key Features of VSOL V1600GS-F

• 1 x GPON Port (PX20++)

• 2 x GE RJ45 Uplink Ports

• 1 x GE SFP / 10GE SFP+ Uplink Port

• Maximum Splitting Ratio: 1:128

• Transmission Distance: Up to 20KM

• 1U Rackmount Chassis Design

• WEB / Telnet / CLI / SNMP Management

• AC & DC Dual Power Support

• Lightning Protection (Power 4KV, Interface 1KV)

GPON Port Specifications

The V1600GS-F is equipped with a high-performance GPON interface for stable fiber access.

• Port Quantity: 1

• Fiber Type: 9/125μm Single Mode

• Connector Type: SC/UPC

• TX Power: 9dBm

• Receiver Sensitivity: -32dBm

• Upstream Speed: 1.244Gbps

• Downstream Speed: 2.488Gbps

• Wavelength: TX 1490nm / RX 1310nm

• Maximum Split Ratio: 1:128

• Maximum Transmission Distance: 20KM

This makes it suitable for high-density FTTH deployments while maintaining stable signal strength and performance.

Uplink Port Configuration

Flexible uplink options allow seamless integration into core networks:

• 2 x GE RJ45 (10/100/1000Mbps)

• 1 x SFP (GE) / SFP+ (10GE)

With 10GE uplink capability, the device ensures sufficient bandwidth aggregation for downstream users. No bottleneck vibes here — just smooth traffic flow.

Hardware & Performance

• Chassis: 1U Rackmount

• Backplane Bandwidth: 29Gbps

• Port Forwarding Rate: 21.576Mpps

• Management Port: 1 x USB-COM (Type-C)

The strong backplane capacity ensures stable data handling even when the GPON port is fully utilized at maximum split ratio.

Management & Control

The VSOL V1600GS-F supports multiple management methods:

• WEB Interface

• Telnet

• CLI

• SNMP

This allows flexible monitoring, configuration, and maintenance for ISP administrators.

Power Supply & Protection

AC Power

• Working Voltage: 100~240V

• Rated Voltage: 110V / 220V

DC Power

• Input Range: -36V to -75V

• DC Adapter: 12V / 2A

Protection Level

• Lightning Protection (Power Supply): 4KV

• Device Interface Protection: 1KV

Dual power support increases deployment flexibility and ensures stable operation in different environments.

Why Choose VSOL V1600GS-F GPON OLT?

• Ideal for small and medium ISP deployments

• Supports up to 128 ONUs on a single PON port

• 10GE uplink for high bandwidth aggregation

• 20KM long-distance fiber coverage

• Strong lightning protection

• Compact 1U rackmount design

For ISPs looking to deploy a cost-effective yet powerful GPON solution, the VSOL V1600GS-F offers scalability, stability, and flexible network management in one compact device.
