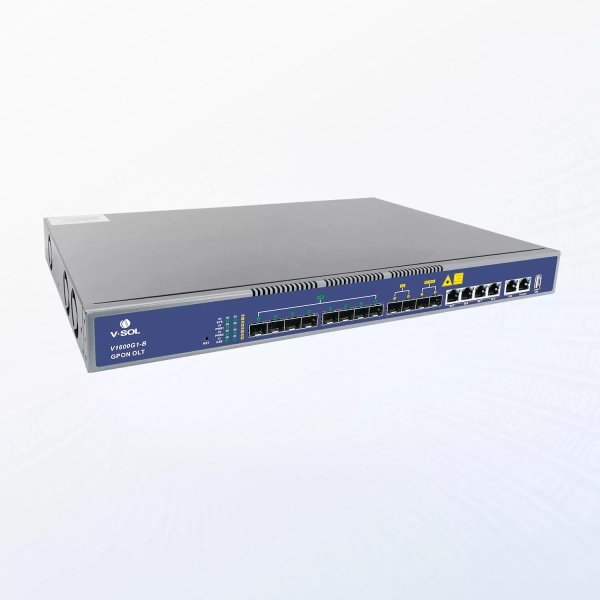

Vsol V1600G1-B 8 Ports GPON OLT (1U 19-Inch Rackmount)

The VSOL V1600G1-B is a powerful 8 Ports GPON OLT designed for high-density FTTH and ISP deployments. Built inside a 1U 19-inch standard rackmount chassis, this OLT delivers strong performance, flexible uplink options, and large backplane capacity for scalable fiber networks.

If your network is growing fast and you don’t want bottlenecks slowing things down, this device is built for that “next-level ISP expansion” phase.

Key Features of Vsol V1600G1-B

• 8 x GPON Ports (SFP Slots)

• 4 x GE RJ45 Uplink Ports

• 2 x GE SFP Uplink Ports

• 2 x 10GE SFP+ Uplink Ports

• 1:128 Maximum Splitting Ratio

• 20KM Transmission Distance

• Backplane Bandwidth: 104Gbps

• Port Forwarding Rate: 68.448Mpps

• Dual AC & DC Power Support

• Multiple Management Modes

8 GPON Ports for High-Density Deployment

The V1600G1-B comes with:

• 8 GPON Ports

• Physical Interface: SFP Slots

• Maximum Split Ratio: 1:128 per PON port

Each GPON port supports:

• Upstream Speed: 1.244Gbps

• Downstream Speed: 2.488Gbps

• Transmission Distance: Up to 20KM

• Wavelength: TX 1490nm / RX 1310nm

• Connector: SC/UPC

• Fiber Type: 9/125μm SMF

This makes it ideal for dense residential broadband, enterprise fiber access, and city-wide FTTH rollouts.

Advanced PON Module Level Support

The OLT supports multiple PON module levels:

• Class B+

• Class C

• Class C+

• Class C++

• Class C+++

This flexibility allows deployment in different optical budget scenarios, whether short-range urban setups or extended fiber coverage.

Flexible Uplink Port Configuration

The uplink structure is built for serious aggregation capacity:

• 4 x RJ45 (GE)

• 2 x SFP (GE)

• 2 x SFP+ (10GE)

With 10GE uplink support, the OLT can efficiently handle high subscriber traffic without congestion. Even during peak usage hours, the core network remains stable and responsive.

High Performance Architecture

• Backplane Bandwidth: 104Gbps

• Port Forwarding Rate: 68.448Mpps

This strong internal switching capacity ensures smooth data forwarding across all ports, even when running near maximum load.

In simple terms: high traffic, zero panic.

Management & Control Options

The V1600G1-B provides comprehensive management interfaces:

• EMS

• WEB

• SNMP

• Telnet

• CLI

Management Ports:

• 1 x 10/100/1000BASE-T Out-band Port

• 1 x CONSOLE Port

• 1 x USB 2.0 Port

These options give network administrators full control over configuration, monitoring, and maintenance.

Power Supply & Voltage Support

AC Power

• Working Voltage: 100~240V

• Rated Voltage: 110V / 220V

DC Power

• Working Voltage: -36V to -75V

• Rated Voltage: -48V / -60V

Dual power input support ensures flexible installation across different ISP infrastructure environments.

Why Choose Vsol V1600G1-B 8 Port GPON OLT?

• 8 GPON ports for scalable deployment

• 1:128 splitting ratio per PON port

• 10GE uplink for high bandwidth aggregation

• 20KM fiber transmission support

• 104Gbps strong backplane performance

• Multiple management modes for full control

• 1U 19-inch rackmount design

For ISPs and network providers looking to build a stable, high-capacity FTTH backbone, the Vsol V1600G1-B delivers performance, scalability, and flexibility in one compact solution.
