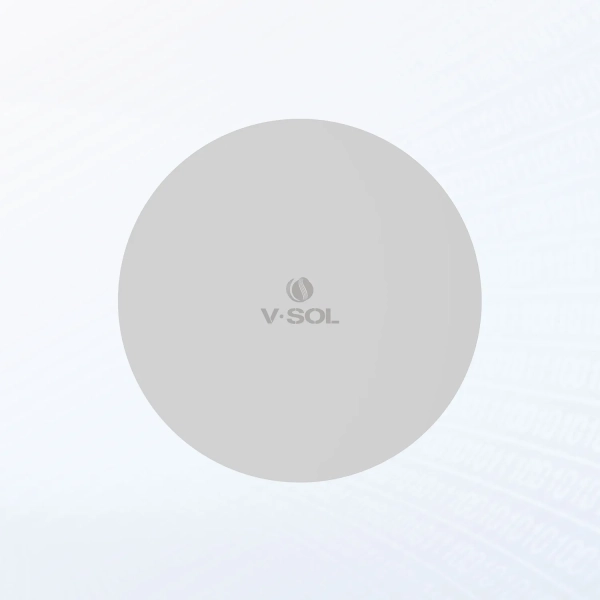

Vsol HG5063C-AX30-1Q 2.5GbE (PoE, PD) + WiFi 6 Router – High-Speed AX3000 Networking Solution

The Vsol HG5063C-AX30-1Q 2.5GbE (PoE, PD) WiFi 6 Router is a powerful dual-band AX3000 wireless router designed for high-speed broadband environments. Featuring a 2.5GbE PoE-powered port, advanced WiFi 6 technology, and enterprise-grade security features, this router ensures fast, stable, and secure connectivity for both residential and business networks.

With support for up to 256 connected devices and Mesh capability, it is built to handle modern smart homes, offices, and high-density wireless environments.

Key Features of Vsol HG5063C-AX30-1Q WiFi 6 Router

• 1× 2.5GbE RJ45 port (PoE, PD, auto-adaptive)

• AX3000 dual-band WiFi 6 speed

  • 2402Mbps (5GHz)

  • 574Mbps (2.4GHz)

• MU-MIMO and OFDMA support for efficient multi-device performance

• Supports up to 256 connected devices

• WPA/WPA2/WPA3 encryption with WPS 2.0

• IPv4, IPv6, and dual-stack compatibility

• Mesh networking support

• Advanced security and parental control features

Hardware & Physical Specifications

• Dimensions: 240mm × 240mm × 48mm (L×W×H)

• Power Adapter: DC 12V, 1.5A

• Power Consumption: ≤18W

• Interface: 1× 2.5GbE (PoE, PD) + WiFi 6

• Indicators: PWR, WAN/LAN

• Button: Reset

Wireless Performance & WiFi 6 Technology

The HG5063C-AX30-1Q is fully compliant with IEEE 802.11b/g/n/ac/ax standards, ensuring compatibility with both legacy and modern devices.

Dual-Band Speed

• 5GHz Band: Up to 2402Mbps (3×3, 4dBi internal antennas)

• 2.4GHz Band: Up to 574Mbps (2×2, 4dBi internal antennas)

Wireless Features

• MU-MIMO & OFDMA for optimized bandwidth distribution

• Hidden SSID support

• WLAN user isolation

• Scheduled WiFi shutdown/startup

• Mesh networking support

This combination ensures lower latency, better coverage, and higher efficiency in multi-device environments.

Network & Routing Capabilities (L3/L4)

The Vsol HG5063C-AX30-1Q router offers comprehensive routing and management functions:

• IPv4, IPv6, and IPv4/IPv6 dual stack support

• DHCP, PPPoE, and Static IP modes

• Static routing and NAT

• DMZ, ALG, UPnP

• Virtual Server support

• DNS Client and DNS Proxy

• DDNS support

These features make it suitable for both ISP deployment and enterprise-level networking.

Advanced Security & Protection

Security is a core strength of this WiFi 6 router. It includes:

• Local access control

• IP address filtering

• URL filtering

• Anti-DoS attack protection

• Anti-port scanning

• Suppression of protocol-specific broadcast/multicast packets (DHCP, ARP, IGMP, etc.)

• Anti-Intranet ARP attack protection

• Parental control function

With WPA3 encryption support, it ensures stronger protection against unauthorized access.

System & Management Functions

• SNTP (Network Time Synchronization)

• Scheduled device restart

• Remote management support

• Flexible configuration options

These features provide easy network maintenance and stable long-term performance.

Environmental Specifications

Working Conditions

• Temperature: -10°C to +50°C

• Humidity: 10–90% (non-condensing)

Storage Conditions

• Temperature: -30°C to +60°C

• Humidity: 10–90% (non-condensing)

The router is designed to operate reliably in various environmental conditions.

Why Choose Vsol HG5063C-AX30-1Q 2.5GbE WiFi 6 Router?

The Vsol HG5063C-AX30-1Q combines ultra-fast 2.5GbE wired connectivity, AX3000 WiFi 6 wireless performance, PoE PD support, advanced security, and Mesh capability in a single compact device. It is ideal for:

• High-speed fiber internet connections

• Smart homes with multiple connected devices

• Small and medium businesses

• ISP deployments

• Enterprise WiFi expansion projects

If you are looking for a powerful, future-ready WiFi 6 router with 2.5GbE support and enterprise-level features, the Vsol HG5063C-AX30-1Q delivers performance, scalability, and security in one complete networking solution.
