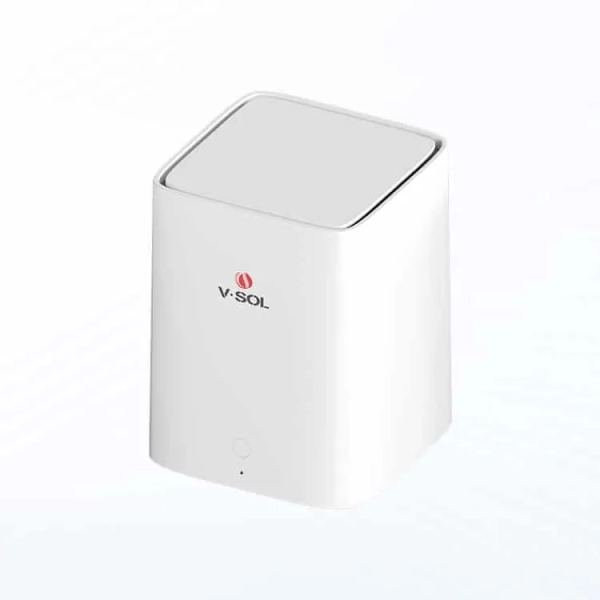

Vsol HG5020-AX15-3G 3GE + USB 2.0 + WiFi 6 Router – Compact AX1500 High-Speed Solution
The Vsol HG5020-AX15-3G WiFi 6 Router is a compact and powerful AX1500 dual-band router designed for high-speed home and small office networking. Equipped with 3 Gigabit Ethernet ports, USB 2.0 connectivity, and advanced WiFi 6 features such as MU-MIMO and OFDMA, this router delivers stable wired and wireless performance for modern broadband environments.
With EasyMesh support, Beamforming technology, and IPv4/IPv6 dual stack compatibility, the HG5020-AX15-3G ensures efficient coverage, lower latency, and improved network efficiency.
Key Features of Vsol HG5020-AX15-3G Router
-
3× Gigabit Ethernet ports (1× WAN, 2× LAN)
-
Dual Band WiFi 6 (AX1500)
-
1200Mbps on 5GHz
-
300Mbps on 2.4GHz
-
-
1× USB 2.0 for shared storage or printer
-
MU-MIMO & OFDMA support
-
Beamforming & Beamsteering technology
-
WiFi EasyMesh support
-
IPv4 / IPv6 dual stack
-
TR-069 & Cloud management
Hardware & Physical Specifications
-
Dimensions: 115 × 115 × 135mm (L×W×H)
-
Net Weight: 0.350kg
-
Power Adapter: DC 12V / 1A
-
Power Consumption: ≤10W
-
Interface: 3× GE + WiFi 6 + USB 2.0
-
Indicators: 1× STATUS, 3× RJ45
-
Buttons: Reset, WPS
Environmental Conditions
Operating Condition:
-
Temperature: 0°C to +50°C
-
Humidity: 5%–90% (non-condensing)
Storage Condition:
-
Temperature: -30°C to +60°C
-
Humidity: 5%–90% (non-condensing)
Gigabit Wired Connectivity
The router includes three 10/100/1000Mbps auto-adaptive RJ45 Ethernet interfaces:
-
1× WAN port (Maximum speed 1Gbps)
-
2× LAN ports
This ensures high-speed wired connections for PCs, Smart TVs, gaming consoles, and other bandwidth-intensive devices.
WiFi 6 AX1500 Wireless Performance
The HG5020-AX15-3G complies with IEEE 802.11b/g/n/ac/ax standards, delivering faster speeds, improved efficiency, and reduced congestion.
Dual Band Speed
-
5GHz Band: Up to 1200Mbps (2×2 MIMO)
-
2.4GHz Band: Up to 300Mbps (2×2 MIMO)
Antenna Configuration
-
4× 4dBi internal antennas
Device Capacity
-
Up to 32 devices (2.4GHz)
-
Up to 32 devices (5GHz)
Advanced Wireless Features
-
MU-MIMO & OFDMA
-
Beamforming
-
Beamsteering
-
WiFi EasyMesh function
-
WPA/WPA2/WPA3 Personal encryption
-
WPS 2.0
These technologies ensure optimized bandwidth distribution and stable multi-device performance.
USB 2.0 Connectivity
The integrated USB 2.0 port supports:
-
Shared storage
-
Network printer sharing
This adds flexibility for home and office network environments.
Routing & Network Functions (L3/L4)
The router supports a wide range of advanced routing and networking capabilities:
-
IPv4, IPv6, IPv4/IPv6 dual stack
-
DHCP, PPPoE, Static IP
-
Static routing and NAT
-
DMZ, ALG, UPnP
-
Virtual Server
-
NTP (Network Time Protocol)
-
DNS Client and DNS Proxy
-
DHCP Server & DHCP Relay
Security & Network Protection
The HG5020-AX15-3G includes comprehensive security features to protect your network:
-
Local access control
-
IP address filtering
-
URL filtering
-
Anti-DoS attack protection
-
Anti-port scanning
-
Broadcast/multicast packet suppression (DHCP, ARP, IGMP, etc.)
-
Anti-Intranet ARP attack protection
-
Parental control function
These features help maintain a secure and stable networking environment.
Multicast & Management
Multicast Support
-
IGMP v1/v2/v3
-
IGMP Proxy and Snooping
Management Options
-
Web interface
-
Telnet
-
TR-069
-
Cloud Management
This makes it suitable for ISP deployment and remote network management.
Why Choose Vsol HG5020-AX15-3G WiFi 6 Router?
The Vsol HG5020-AX15-3G combines Gigabit wired performance, AX1500 WiFi 6 speed, USB sharing capability, EasyMesh support, and advanced security in a compact, energy-efficient design.
It is ideal for:
-
Fiber broadband users
-
Smart homes
-
Small offices
-
ISP deployments
-
Multi-device households
If you need a reliable, modern WiFi 6 router with Gigabit connectivity and USB sharing features, the Vsol HG5020-AX15-3G delivers efficient performance with professional-grade network management capabilities.
