Description

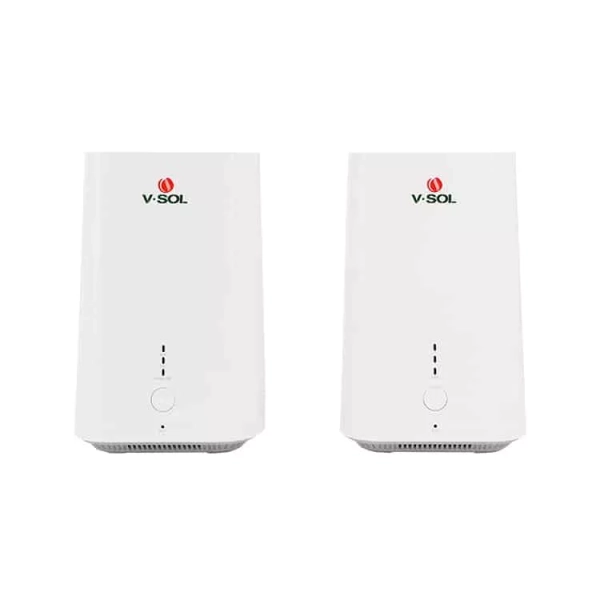

Vsol HG3610ACM 1GE+1FE+WiFi5 Router – Reliable Dual Band 1200Mbps Networking Solution

The Vsol HG3610ACM 1GE+1FE+WiFi5 Router is a compact and efficient dual-band wireless router designed for stable home and small office networking. With combined wireless speeds up to 1200Mbps, Gigabit and Fast Ethernet ports, and full IPv4/IPv6 stack support, this router delivers dependable performance for broadband connections.

Built with EasyMesh capability and multiple SSID support, the HG3610ACM ensures flexible deployment and seamless wireless coverage expansion.

Key Features of Vsol HG3610ACM Router

• 1× Gigabit Ethernet (10/100/1000Mbps) port

• 1× Fast Ethernet (10/100Mbps) port

• Dual Band WiFi5 (802.11ac) up to 1200Mbps

• IPv4 / IPv6 dual stack support

• 4× 5dBi external high-gain antennas

• EasyMesh support with WPS pairing

• QoS with 4-level priority queues

• PPPoE, DHCP Client, Static IP support

Hardware & Physical Specifications

• Model: HG3610ACM

• Dimensions: 117mm × 117mm × 240mm (L×W×H)

• Net Weight: 560g

• Power Adapter: DC 12V, 1A (External AC-DC Adapter)

• Power Consumption: ≤10W

• Indicators: SYS, LAN1, LAN2

Environmental Conditions

Operating Condition:

• Temperature: 0°C to +55°C

• Humidity: 10%–90% (non-condensing)

Storage Condition:

• Temperature: -30°C to +60°C

• Humidity: 10%–90% (non-condensing)

LAN & WAN Interface Details

The HG3610ACM router includes:

• 1× 10/100Mbps auto-adaptive Ethernet port

• 1× 10/100/1000Mbps auto-adaptive WAN/LAN Ethernet port

• RJ45 connectors

• AUTO MDIX support (automatic polarity detection)

WAN/LAN Modes

• PPPoE

• DHCP Client

• Static IP

This flexibility makes it compatible with most ISP broadband configurations.

Dual Band WiFi5 Performance

The Vsol HG3610ACM supports IEEE 802.11b/g/n/ac standards for high-speed wireless connectivity.

Frequency Bands

• 2.4GHz: 2.400–2.483GHz

• 5GHz: 5.150–5.825GHz

Wireless Speed & Antenna

• MIMO 2×2 (2.4GHz)

• MIMO 2×2 (5GHz)

• 4× 5dBi external antennas

• Combined wireless rate up to 1.166Gbps

Transmission Power

• 802.11n: 22dBm

• 802.11ac: 24dBm

The external high-gain antennas enhance coverage and signal stability across multiple rooms.

Wireless Features & Security

• Support for 802.11 b/g/n/ac

• Multiple SSID support

• Wireless AP mode

• EasyMesh protocol support

• WPS button for quick pairing

Wireless Security

• WEP

• WPA-PSK (TKIP)

• WPA2-PSK (AES)

Modulation & Encoding

• DSSS, CCK, OFDM

• BPSK, QPSK, 16QAM, 64QAM

These features ensure both compatibility and secure wireless networking.

Advanced Data & Network Management

The HG3610ACM router includes several professional-grade data service features:

• Full speed non-blocking switching

• 2K MAC address table

• Port monitoring and port mirroring

• Port rate limiting and SLA support

• IEEE802.1p QoS with 4-level priority queues

• IGMP v1/v2/v3 snooping and proxy

• MLD v1/v2 snooping and proxy

• Bridge mode, router mode, and mixed bridge/router mode

Management Mode

• Web-based configuration interface

These capabilities make it suitable for both home users and small business environments requiring stable traffic management.

Why Choose Vsol HG3610ACM WiFi5 Router?

The Vsol HG3610ACM offers a balanced combination of Gigabit wired connectivity, dual-band WiFi5 performance, IPv4/IPv6 support, and EasyMesh expansion. Its compact design, low power consumption, and advanced management features make it ideal for:

• Home broadband users

• Small office setups

• Apartment WiFi coverage

• ISP deployments

• EasyMesh network expansion

If you need a dependable and cost-effective dual-band WiFi5 router with Gigabit support and flexible network management, the Vsol HG3610ACM is a reliable choice for stable everyday connectivity.
