Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳11,000
| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | mATX 200mmx236.16mm |
|
| BIOS | ||
| Audio | `Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 1 x m.2 | |
| Others | ||
| Memory | ||
| Type | DDR4 | |
| Slots | 1 | |
| Supported Memory | 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 64GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 1.4 with HDR, maximum resolution of 4K 30Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 1.4 with HDR port | |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) |
|
| LAN Port (s) | Realtek RTL8111H Gigabit LAN | |
| Wireless Communication module | ||
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G |
|
| RAID | ||
| Audio | Audio Connectors | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

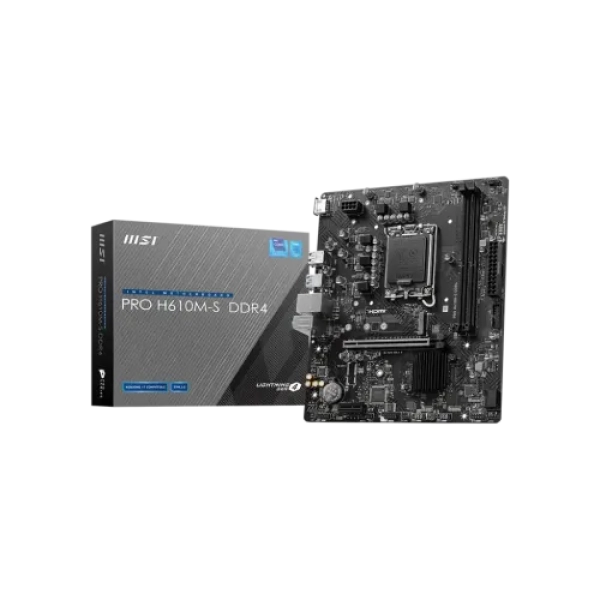

The MSI PRO H610M-S DDR4 Micro-ATX Motherboard is built for Intel's 14th, 13th, and 12th Gen processors (LGA1700), offering powerful performance for gaming, office work, and content creation. With 2x DDR4 RAM slots supporting up to 96GB, you get smooth multitasking and responsiveness. The M.2 slot ensures high-speed SSD performance, while the Realtek RTL8111H Gigabit LAN provides reliable connectivity. The HDMI port delivers crisp visuals for entertainment and professional use. Get the best deal in Bangladesh at Four Star IT, with nationwide delivery!
