| Basic Information | ||
| Supported CPU | Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | Intel H610 Chipset | |
| Form Factor | mATX 211mmx243.84mm |
|
| BIOS | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) 1x M.2 slot with E-key for PCIe WiFi module only |
|
| M.2 Socket | 1x M.2 |
|
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 2x DDR5 memory slots |
|
| Supported Memory | Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | Support up to 96GB |
|
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| USB (s) | 4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
|
| LAN Port (s) | Intel I219V 1Gbps LAN controller | |
| Wireless Communication module | ||
| Supported Storage | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | ||
| Audio | ||
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 2x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Others | ||
| Special Features | LED FEATURE: 4x EZ Debug LED |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years |
|
| others | ||

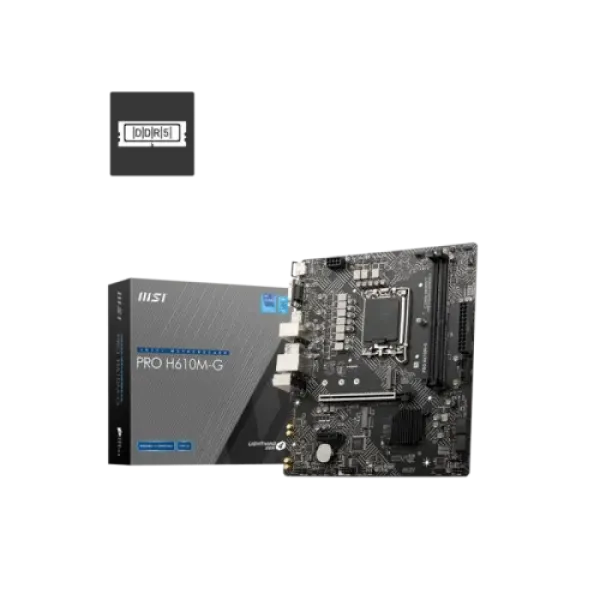

Unlock Next-Level Performance with the MSI PRO H610M-G DDR5 mATX Motherboard
Upgrade your system with the MSI PRO H610M-G DDR5 mATX Motherboard, engineered for Intel's 12th, 13th, and 14th Gen Core processors. With support for DDR5 memory up to 96GB, this motherboard ensures that you get maximum performance and smooth multitasking for a wide variety of applications, from gaming to professional work.
The MSI PRO H610M-G DDR5 mATX Motherboard delivers reliable and powerful performance for a wide range of applications. Whether you’re building a new gaming rig, workstation, or upgrading your existing setup, this motherboard will support all your needs with high-speed memory, fast storage options, and comprehensive expansion slots. It ensures your system can handle both everyday tasks and demanding applications with ease.
Ideal for those who need robust performance and future-proofing for gaming, content creation, and productivity. The integrated Realtek ALC897 audio codec provides high-definition sound for an immersive media experience.
Whether you're looking to build a high-performance gaming PC or a reliable workstation, the MSI PRO H610M-G DDR5 mATX Motherboard provides all the features and performance you need to power your system with ease.
