| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) |
|
| Chipset | INTEL B860 | |
| Form Factor | ATX (243.84mmx304.8mm) | |
| BIOS | ||
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset) |
|
| M.2 Socket | 3x M.2 |
|
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | 4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s |
|
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 |
|
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) |
|
| LAN Port (s) | Realtek 8126 5Gbps LAN | |
| Wireless Communication module | ||
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) |
|
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Year warranty | |
| others | ||

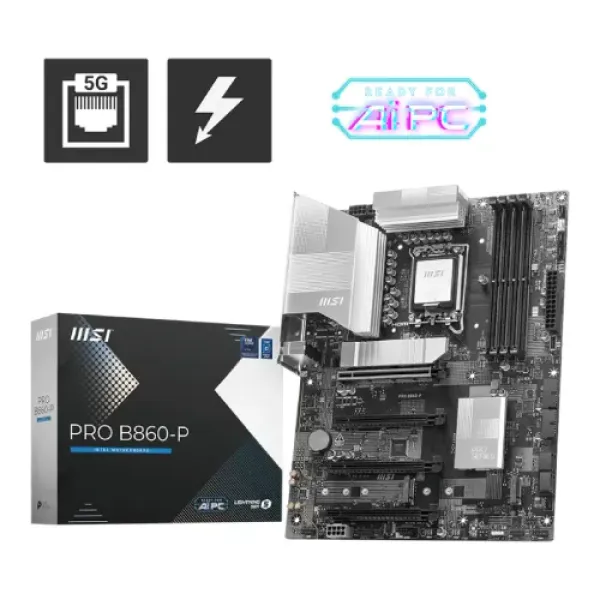

The MSI PRO B860-P LGA 1851 ATX Motherboard is designed to support Intel's latest Core Ultra processors, offering exceptional performance and connectivity for both professional and high-end gaming builds. Built with the Intel B860 chipset, this motherboard features PCIe 5.0 for ultra-fast data transfer, ensuring optimal speed and bandwidth for your GPU and storage devices. It includes four DDR5 memory slots, supporting up to 256GB of RAM and high overclocking frequencies, perfect for demanding applications and multitasking.
Equipped with three M.2 slots and four SATA 6G ports, it provides ample storage options, including RAID support for faster data handling. The onboard Realtek ALC897 codec delivers 7.1-channel high-definition audio, providing an immersive sound experience.
For connectivity, the MSI PRO B860-P includes multiple USB ports, including USB 5Gbps and USB 10Gbps Type-A, along with Thunderbolt 4 support via a Type-C port, enabling high-speed data transfer and support for up to 8K resolution displays. The motherboard also features a Realtek 5Gbps LAN port for stable, high-speed networking and is equipped with built-in Wi-Fi support (optional via module). Whether you’re building a workstation or a gaming rig, the MSI PRO B860-P offers robust features to power your system for years to come.
Get specific details about this product from customers who own it.
