Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳16,060
| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors | |
| Chipset | AMD B550 | |
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| BIOS | ||
| Audio | ||
| Others | ||
| Expansion Slots | ||
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 2x PCIe 3.0 x1 slots |
|
| M.2 Socket | 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
|
| Others | ||
| Memory | ||
| Type | Dual-channel memory architecture | |
| Slots | 4x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHZ 1DPC 2R max speed 3733 MHZ 2DPC 1R max speed 3866 MHZ 2DPC 2R max speed 3466 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory Supports un-buffered memory |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz |
|
| Others | Max Shared Memory 16GB |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz | |
| USB (s) | AMD B550 Chipset 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back pan |
|
| LAN Port (s) | 1x Realtek 8111HN Gigabit LAN controller | |
| Wireless Communication module | ||
| Supported Storage | AMD B550 Chipset 4x SATA 6Gb/s ports 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
|
| RAID | ||
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 3x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 2x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1 x TPM module connector | |
| Others | ||
| Others | ||
| Special Features | ||
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 03 Years Warranty | |
| others | ||

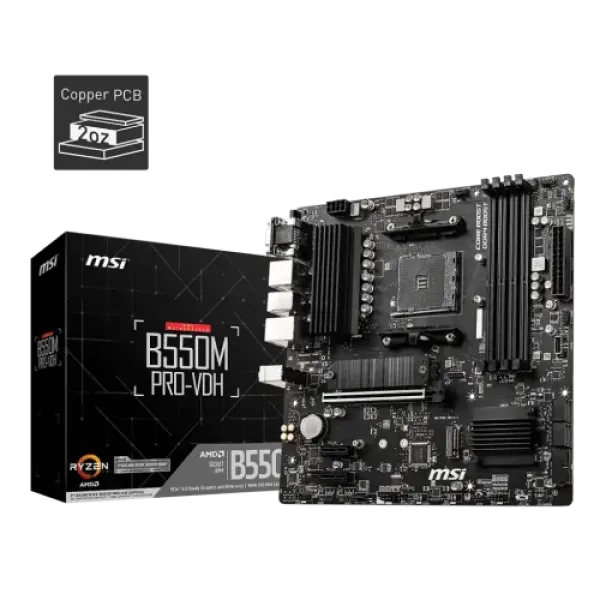

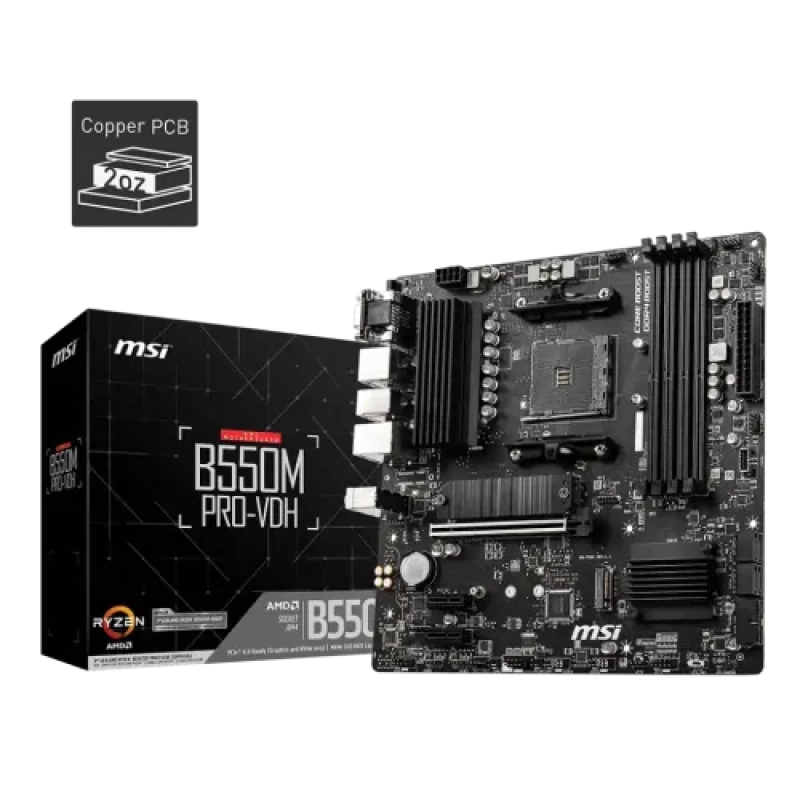

The MSI B550M Pro-VDH AMD AM4 Micro-ATX Motherboard is a powerful and reliable choice for gaming and professional applications. Supporting AMD Ryzen 5000 & 3000 series processors, this motherboard delivers high-speed performance with DDR4 memory up to 4400MHz (OC), PCIe 4.0, and Lightning Gen4 x4 M.2 with M.2 Shield Frozr for superior storage speed. Its 2OZ thickened copper PCB ensures better heat dissipation and stability, making it ideal for high-performance tasks. The Pro-VDH series is engineered for smooth multitasking, excellent connectivity, and advanced cooling solutions. Whether you’re building a budget gaming PC or a professional workstation, the MSI B550M Pro-VDH provides exceptional value and durability. Buy now from Four Star IT at the best price in Bangladesh and enjoy nationwide delivery.
